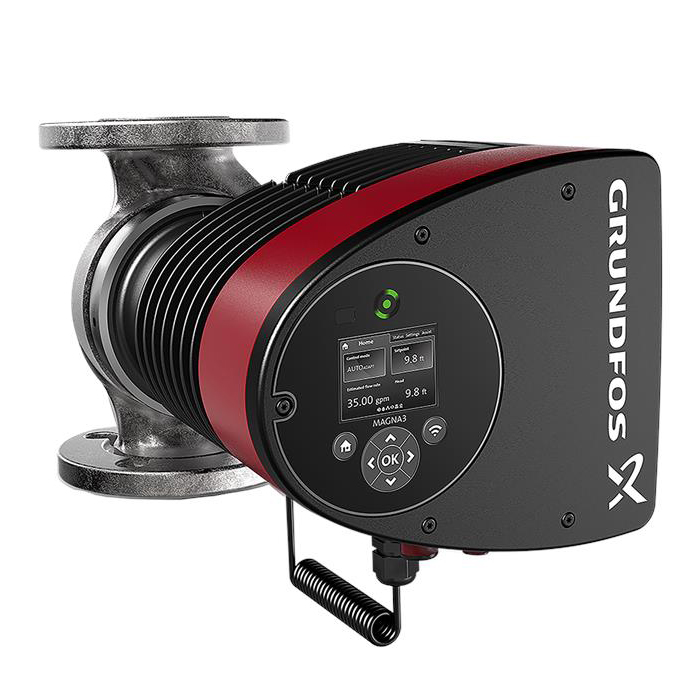

98126850 Grundfos MAGNA3 65-120 FN Stainless Steel Circulator Pump 208/230V 1 HP 1PH GF 65 Variable Speed
Part #GRUMAGNA365120208/230SS
MFG #98126850
Manufacturer Name : Grundfos
- Circulator Pump
- Type Canned Rotor, Compact, Single Head
- Applicable Standard ANSI/UL 778, CAN/CSA C22.2, ETL (Canada and US)
- Suction Size 65 MM
- Discharge Size 65 MM
- End Connection Flanged x Flanged
- Overall Dimensions 15.98" Length x 11.7" Width x 13.4" Height
- Flow Rate 346 GPM
- Discharge Head 120 Decimeter
- Casing Material Stainless Steel
- Shaft Material 316L Stainless Steel
- Impeller Material Polyethersulfone
- Warranty 24 Month Limited from Date of Installation, 30 Month Limited from Date of Manufacture
- Power Rating 1 HP
- Input Supply Rating 769 Watt at 208 to 230 Volt 50/60 Hertz 1 Phase 3.38 Amp
- Temperature Rating 14 to 230 Deg F
- Pressure Rating 175 PSI
- Motor Type Synchronous, Permanent Magnet, 4 Pole
- Inclusions/Features Aluminum Oxide Bearing Ring, Polycarbonate Control Box, Heat Energy Meter, Intuitive User Interface with TFT Display, Built-In Grundfos Differential Pressure and Temperature Sensor, Internal Motor Protection, Proportional-Pressure Control, Constant-Pressure Control, Constant-Temperature Control, Constant-Curve Duty, Automatic Night Setback
- Application Heating Systems, Air-Conditioning and Cooling Systems, Domestic Hot-Water Systems, Ground Source Heat Pump Systems, Solar-Heating Systems, Heating Surfaces
- Material Aluminum Stator Housing, EPDM O-Ring, Polypropylene Sulfide Rotor Can
- Net Weight 46 Lb
- Gross Weight 54 Lb
- Install Instructions
Specification Sheet - The MAGNA3 N offers all of the features of a MAGNA3 in stainless-steel, if the media requires this, for example in domestic-hot water applications. The MAGNA3 has integrated Bluetooth allowing it to connect directly with the Grundfos GO APP.
