Part #GRUMAGNA365150208/230

MFG #98126852

Specifications

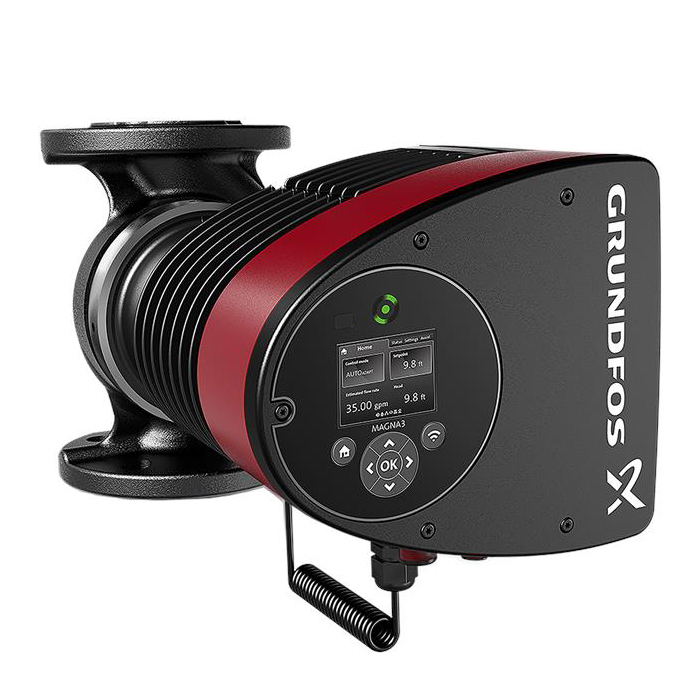

• Circulator Pump
• Type Canned Rotor, Compact, Single Head
• Applicable Standard ANSI/UL 778, CAN/CSA C22.2, ETL (Canada and US)
• Suction Size 65 MM
• Discharge Size 65 MM
• End Connection Flanged x Flanged
• Overall Dimensions 15.98" Length x 11.7" Width x 13.4" Height
• Flow Rate 346 GPM
• Discharge Head 150 Decimeter
• Casing Material Cast Iron
• Shaft Material 316L Stainless Steel
• Impeller Material Polyethersulfone
• Warranty 24 Month Limited from Date of Installation, 30 Month Limited from Date of Manufacture
• Power Rating 1.5 HP
• Input Supply Rating 1301 Watt at 208 to 230 Volt 50/60 Hertz 1 Phase 5.68 Amp
• Temperature Rating 14 to 230 Deg F
• Pressure Rating 175 PSI
• Motor Type Synchronous, Permanent Magnet, 4 Pole
• Inclusions/Features Aluminum Oxide Bearing Ring, Polycarbonate Control Box, Heat Energy Meter, Intuitive User Interface with TFT Display, Built-In Grundfos Differential Pressure and Temperature Sensor, Internal Motor Protection, Proportional-Pressure Control, Constant-Pressure Control, Constant-Temperature Control, Constant-Curve Duty, Automatic Night Setback
• Application Heating Systems, Air-Conditioning and Cooling Systems, Domestic Hot-Water Systems, Ground Source Heat Pump Systems, Solar-Heating Systems, Heating Surfaces
• Material Aluminum Stator Housing, EPDM O-Ring, Polypropylene Sulfide Rotor Can
• Net Weight 53 Lb
• Gross Weight 61 Lb
