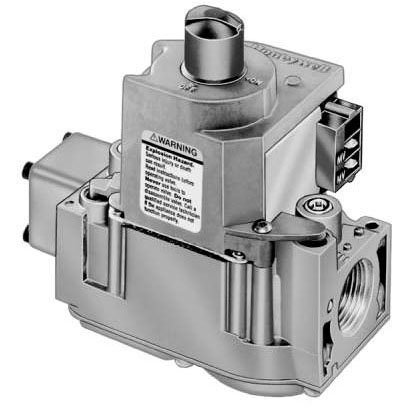

VR8305M3506/U Honeywell 1/2" X 3/4" Standard 24V Duel Direct Ignition Gas Valve
Part #HONVR8305M3506
MFG #VR8305M3506/U
Manufacturer Name : Honeywell
- Gas Control Valve
- Type Single Stage
- Applicable Standard CSA, UL
- Port Connection 1/2" x 3/4"
- Input Supply Rating 24 Volt AC at 60 Hertz
- Temperature Rating -40 to 175 Deg F
- Pressure Rating 1/2 PSI
- Mounting Details Vertical Mount
- Media Handled Gas
- Inclusions/Features 3/4" Straight Flange, 3/4" x 1/2" Reducer Bushing, Natural to LP Conversion Kit, Manual Valve, (2) Automatic Operator, Pressure Regulator
- Application Residential Combustion Control
- Overall Dimension 4-1/16" Length x 2-11/16" Depth x 5-3/8" Height
- Electrical Connection 1/4" Quick-Connect Male Terminal
- Ignition Type Direct
- Gas Type Natural
- Body Pattern Straight-Through
- Install Instructions
Specification Sheet - Solenoid-Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes when Call for Heat Ends; Diaphragm-Operated Second Automatic Valve Opens Under Control of Regulator, Closes if Gas or Power Supply is Interrupted; All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control; Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure Under Wide Fluctuations in Gas Supply Pressure; Natural to Lap and Lap to Natural Conversion Kit's Available for Standard and Slow Opening Gas Valve; On/Off Lighting Sequence
