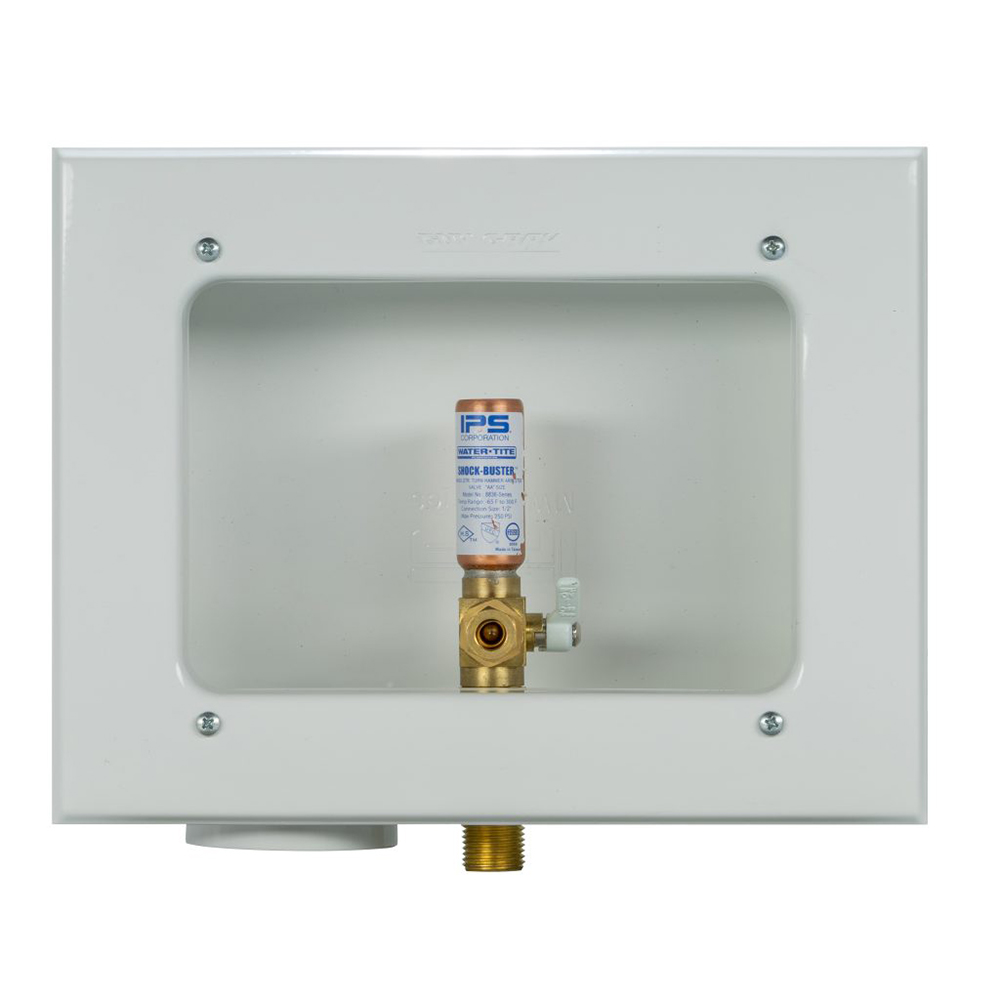

88436 IPS LF Ice Maker Outlet Box With 2" Slipnut Drain, Quarter-Turn Hammer Arrester Valve And 1/2" Sweat Connection
Part #IPS88436
MFG #88436
Manufacturer Name : IPS
- Ensure your dishwasher or icemaker is properly connected to a water supply and fits snugly against the wall with the Guy Gray White Powder-Coated Metal Dishwasher and Ice Maker Outlet Box. This recessed outlet box is designed to be installed in the stud bay, minimizing bulkiness and increasing living space. It measures 10-7/8 inches wide 8-3/8 inches high (with faceplate) and is available with a variety of different valve types.
- Install Instructions
Specification Sheet - Ideal for commercial coffee maker, dishwasher, or ice maker applications
- Valve contains 3/8"compression outlet
- Valve can be installed in multiple configurations
- 3/8" brass plated, Qtr-turn hammer arrester valve meeting Lead‐Free requirements NSF61‐NSF/ANSI 372
- Slipnut Drain Included (2” male adapter or pipe nipple not included in Slipnut Kit)
- Valve complies with ASSE 1010
- Valves comply with the requirements of NSF 61-G and the “Reduction of Lead in Drinking Water Act” (Federal Public Law 111-380)
