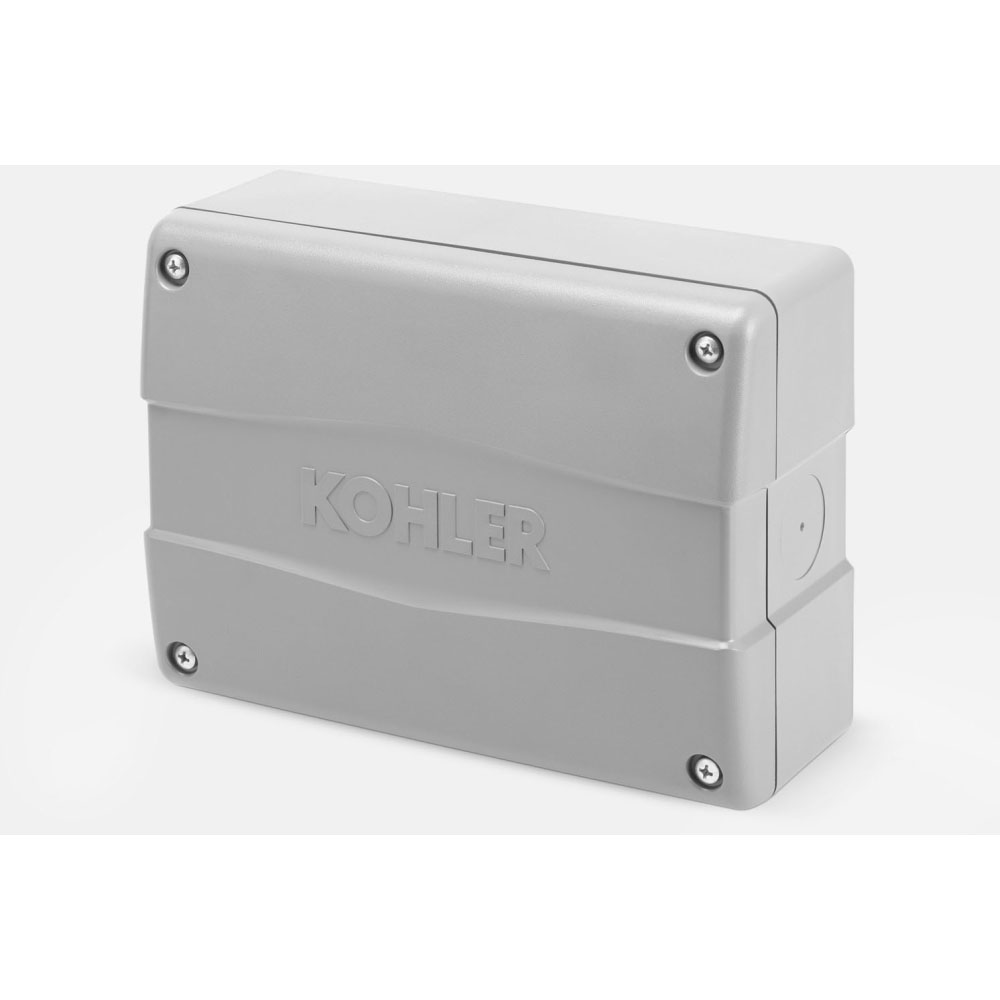

GM92001-KP1-QS Kohler Power Power Relay Module With 50 Amp In NEMA 3R Housing
Part #KOHGM92001KP1QS
MFG #GM92001-KP1-QS
Manufacturer Name : Kohler Power
Type : Relay
- Generator Power Relay Module
- Item Power Relay Module
- Type DPST(Double Pole Single Throw)
- Size 6.8 Inch x 9.2 Inch x 3.6 Inch
- Voltage Rating 240 Volt AC at 50 Amp, 120 Volt (Coil Voltage)
- Temperature Rating -4 to 131 Deg F (Operating), -40 to 185 Deg F (Storage)
- Coil connection 12-18 AWG
- Connecting Lug Wire Size 14 to 4 AWG
- Used on model RDT, RXT
- Includes Factory Installed Connecting Lug
- Applicable Standard UL, CUL, ISO 9001
- Specification Sheet
- The Module Enclosure is Rated Nema 3R for Installation Indoors or Outdoors; The Module Enclosure Includes Mounting Holes for Installation and Recommended Locations for Conduit Connections; Modules Mount on a Wall or Other Sturdy Vertical Surface
