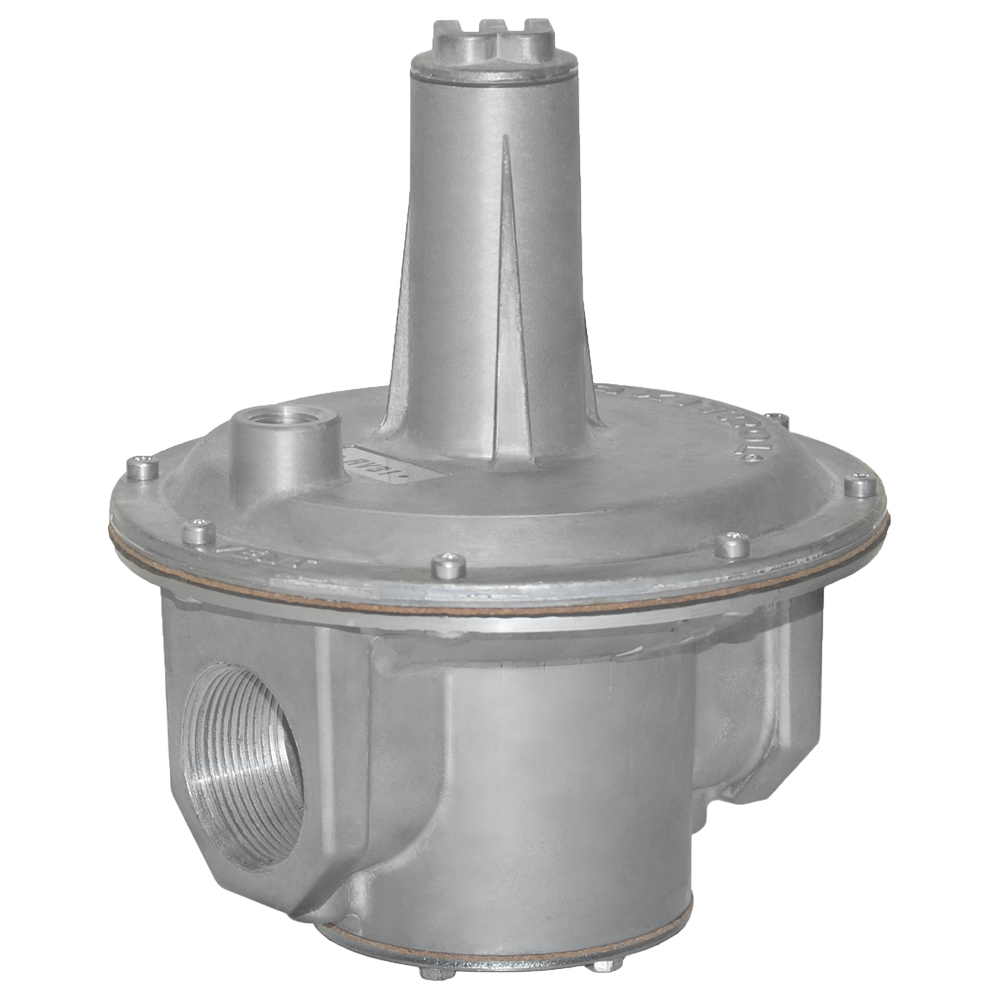

RV52-66-001 Maxitrol 3/4" 900K BTU/hr Flow Thru Regulator 3-6" w.c.
Part #MAXRV5236
MFG #RV52-66-001
BTU Capacity : 900,000 BTU/Hr
Inlet Size : 3/4"
Manufacturer Name : Maxitrol
Outlet Pressure : 3-6" w.c.
Outlet Size : 3/4"
Type : Regulator
Vent Position : Over Outlet
- Maxitrol’s straight-thru-flow (STF) design regulators are non-lockup type regulators for high capacities at low inlet pressures. The cone principal permits gas to flow straight through the regulator without changing directions. Frictional flow resistance is reduced, resulting in greater capacity. An improved flow pattern provides accurate, sensitive regulation at extremely low pressure differentials. Typical applications include residential, commercial, and industrial gas-fired appliances and equipment used on low or medium pressure gas supplies.
- Specification Sheet
