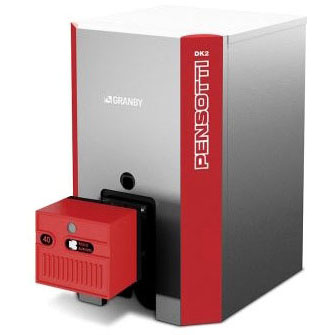

HQDK2-7 Pensotti Cast Iron Oil Boiler 7 Section 3 Pass Less Burner 170 MBH
Part #PENHQDK27
MFG #HQDK2-7
AFUE : 85.00 - 89.99%
Application : Water
Boiler Material : Cast Iron
BTU Output : 150,000 - 174,999
Manufacturer Name : Pensotti
Return Connection : 1-1/4"
Supply Connection : 1-1/4"
Tankless Coil : No
Venting Type : Atmospheric or Direct
With Burner : No
- The DK2 Boiler Utilizes a European Triple Pass Design to Extract the Maximum Amount of Heat from the Fuel Being Burned;Coupled with an Indirect Tank, the DK2 Boiler Can Provide Ample Domestic Hot Water;Bolt on Manifolds and Leg Levellers for Simple Installation;Full Swing Door and Flue Pipe Cleanout for Easy Cleaning;Limited Lifetime Warranty;Energy Star Rated
- Install Instructions
- Residential Oil Boiler
- Type Hot Water, Triple Pass
- Applicable Standard ASME H, AHRI
- Supply Connection 1-1/4"
- Return Connection 1-1/4"
- DOE Heating Capacity 195 MBH
- Net IBR Rating 171 MBH
- AFUE Rating 87.3 Percent
- Input Supply Rating 120 Volt AC
- Firing Rate 1.6 GPH
- Boiler Dimensions 36-5/8" Length x 17-3/4" Width x 29" Height
- Boiler Material Cast Iron
- Chimney Size 7" Diameter x 18' Length
- Water Content 10.8 Gallon
- Burner Type Riello/Carlin
- Venting Type Chimney
- Vent Size 7"
- Relief Valve Details Supplied
- Pressure Rating 12 PSIG
- Warranty Lifetime Limited
- Options L7248 Limit Control, Burner
- Inclusions/Features Bolt on Manifold, Leg Leveller, Full Swing Door, Flue Pipe Cleanout
- Boiler Type Water
- Fuel Oil
- With Domestic Hot Water Yes
- Net IBR 171 MBH
- AFUE 87.3%
- Vent Type Chimney
- Number of Sections 7
- Warranty Lifetime Limited
