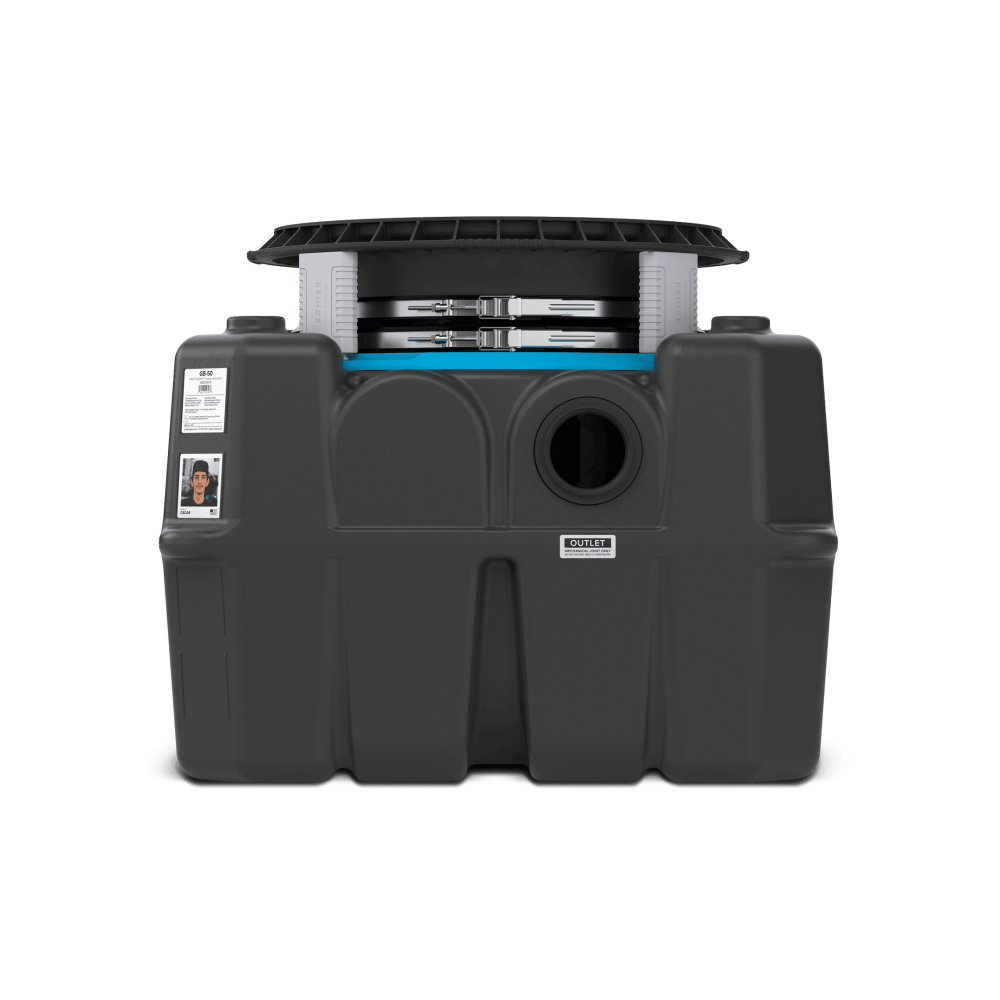

4025-017-01 4" 50 GPM Grease Interceptor
Part #SCHGB50
MFG #4025-017-01
Manufacturer Name : Schier
- Interceptor
- Type Grease
- Applicable Standard ASME A112.14.3, CSA B481.1, UPC, UPC (Canada)
- Pipe Size 4"
- End Connection Plain x Plain
- Body Height 28-1/2"
- Body Width 28"
- Inlet to Top Height 10-1/2"
- Outlet to Bottom Height 18"
- Overall Length 37"
- Grease Capacity 249 Lb
- Water Capacity 52 Gallon
- Flow Rate 50 GPM
- Body Material Polyethylene
- Inclusions/Features 7/16" Nut Driver Tool/Bit, Marker
- Exclusions Tape Measure, Drill with 1/2" Chuck, Jigsaw, Circular Saw or Reciprocating Saw
- Application Drainage
- Operating Temperature Rating 190 Deg F
- Specification Sheet
- Built-In Flow Control; for Gravity Drainage Applications Only; Do Not Use for Pressure Applications; Cover Placement Allows Full Access to Tank for Proper Maintenance; Vent Not Required Unless per Local Code; Engineered Inlet and Outlet Di?users are Removable to Inspect/Clean Piping; Integral Air Relief/Anti-Siphon/Sampling Access
