Part #STROS50

MFG #5025-001-01

Specifications

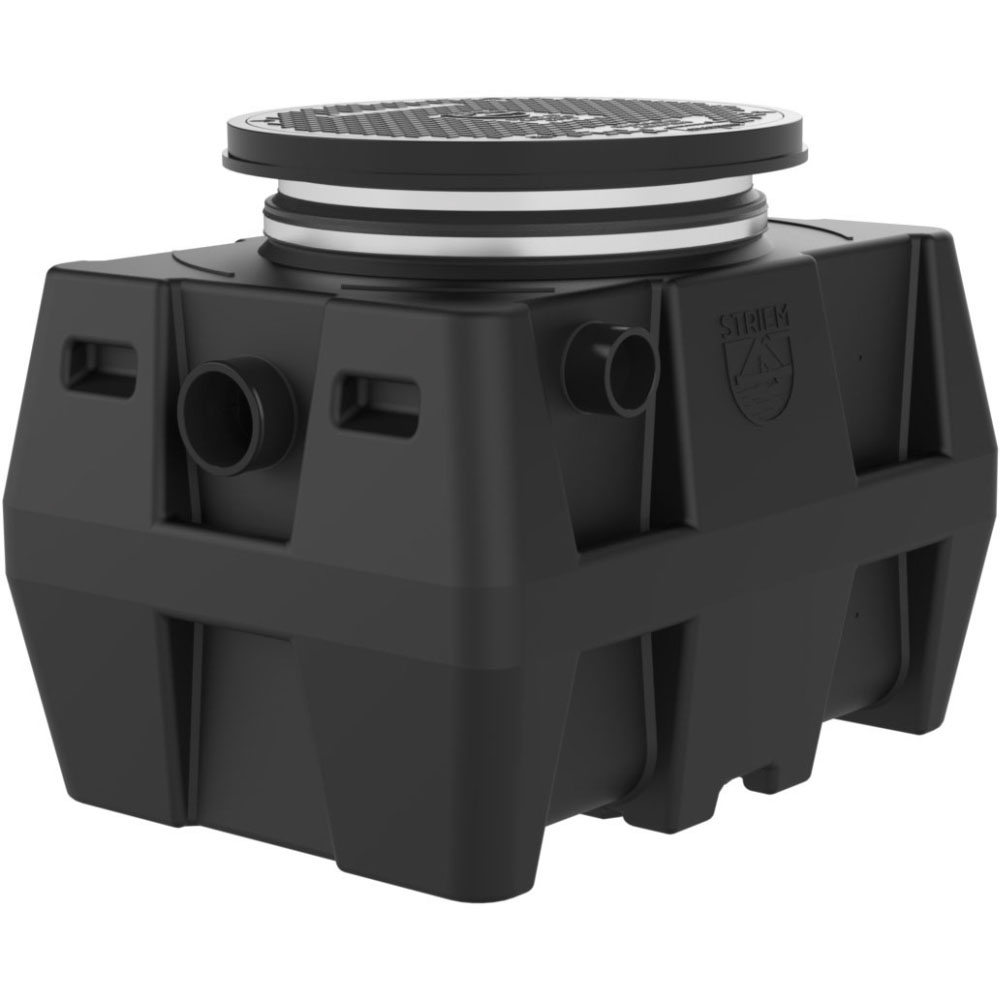

• Oil Separator
• Type Oil
• Pipe Size 4 Inch
• End Connection Plain End (Inlet/Outlet)
• Body Height 28-1/2 Inch
• Body Width 28 Inch
• Inlet to Top Height 10-1/2 Inch
• Outlet to Bottom Height 20 Inch
• Overall Length 37 Inch
• Grease Capacity 2000 Pound
• Water Capacity 57 Gallon
• Flow Rate 50 GPM
• Body Material Polyethylene
• Inclusions/Features Snap-In Flow Control, 3-1/2 Inch Built-in Adapter
• Application Gravity Drainage
• Applicable Standard IBC 2012, ASCE/SEI 7
• Capacity 40 Gallon (Oil), 7 Gallon (Sand)
• Temperature Rating 140 Deg F
• Material Cast Iron (Cover)
