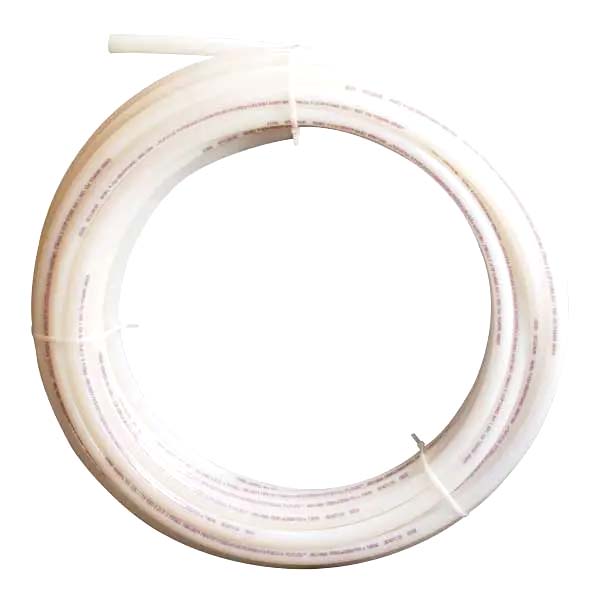

F1021250 Uponor AquaPEX 1-1/4" X 300' Type A Potable PEX Tubing Coil, White
Part #UPOF1021250
MFG #F1021250
Application : Potable
Color : White
Inside Diameter : 1-1/4" ID
Length : 300'
Manufacturer Name : Uponor
- Tubing
- Applicable Standard ANSI/NSF 14/61, AWWA C904 4, BMEC, CAN/ULC S101/S102.2, CCMC, CSA, CSA B137.5/B214, ETL, ICC-ES, PPI TR-4, UL, UL 263/1821 3, ULC S115, ULC/ORD-C199P 3
- Outside Diameter 1.375"
- Inside Diameter 1.054"
- Length 300'
- Material Polyethylene
- Material Specification ASTM F876, ASTM F877, ASTM F1960, ASTM F2023, ASTM E84, ASTM E119, ASTM E814
- Pressure Rating 160 PSI at 73.4 Deg F
- Temperature Rating 200 Deg F
- Color White
- Weight 106 Lb
- Application Plumbing System, Fire Safety System, Radiant Heating and Cooling System, Hot and Cold Water Distribution System, Hydronic Heating
- Packaging Quantity 2 Coils per Pallet
- Nominal Size 1-1/4"
- Linear Expansion Rate 1.1"/10 Deg F/100'
- Install Instructions
Specification Sheet - Use Uponor Aquapex white pipe in Aquasafe residential fire safety systems as well as domestic hot, cold, and hot-water recirculation systems. The pipe is available in 3/4”, 1” & 1 1/4” in various coil lengths. It is also suitable for use in hydronic heating and/or cooling applications where the system contains no ferrous corrodible components or where any ferrous components are isolated from the pipe.
