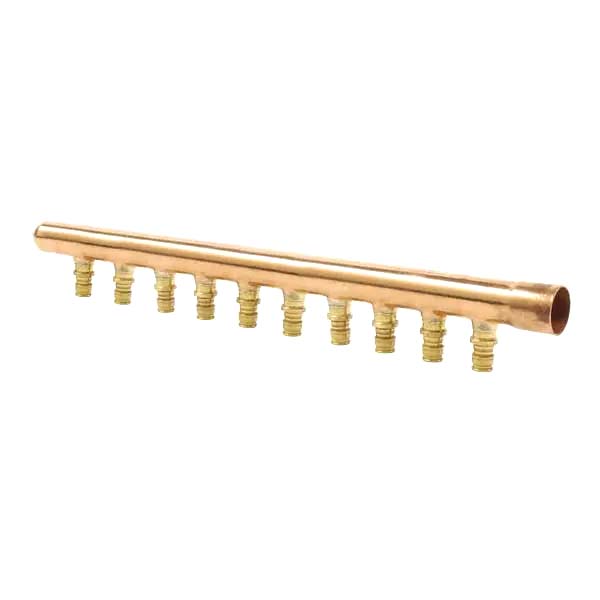

LF2831050 Uponor ProPEX 1" 10 Loop Copper Manifold With 1/2" Pex Cold Expansion Out
Part #UPOLF2831050
MFG #LF2831050
Manufacturer Name : Uponor
- Manifold
- Applicable Standard ASTM F877, ASTM F1960, ANSI/NSF 14/61, CAN/CSA B137.5, NSPC, NPC (Canada), IPC, UPC, UL 1821, IAPMO
- Port Size 1" Inlet (Branch), 1/2" Outlet
- Length 17.95"
- Height 2.4"
- Number of Ports 10
- End Connection Copper x PEX
- Body Material Copper, Brass
- Temperature Rating 320 Deg F
- Pressure Rating 150 PSI at 210 Deg F
- Lead Free
- Maximum Flow Rate 20.5 GPM
- Application PEX-a Plumbing System, Residential Fire Safety System, Radiant Heating and Cooling System, Hot/Cold Domestic Potable Water Distribution System
- Packaging Quantity 1
- Weight 1.7 Lb
- Warranty 25 Year System
- Specification Sheet
- Propex 1" copper branch manifolds feature 1/2" Propex LF brass outlets brazed to the manifold trunk. Sweat manifolds together to create the desired number of outlets. Do not exceed acceptable flow rates for 1" nominal copper.
