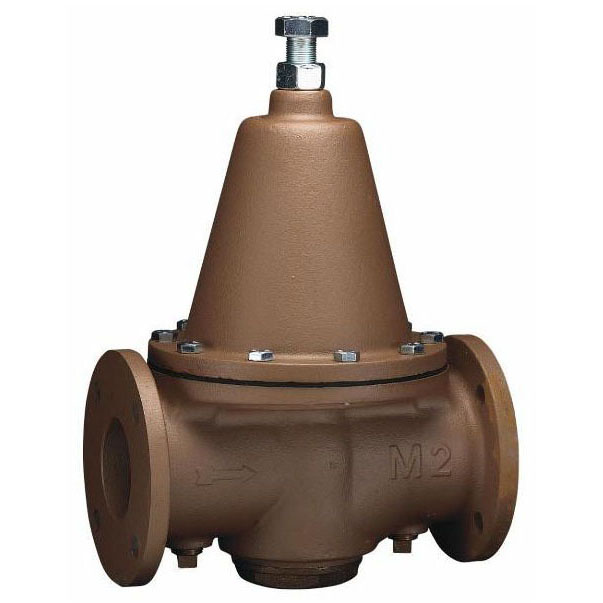

LFN223F Watts 3" Flanged Lead Free Flanged Water Pressure Reducing Valve 25-75 PSI
Part #WATLFN223F3
MFG #298620
Inlet Connection : IPS
Manufacturer Name : Watts
PSI : 25 - 75
Valve Size : 3"
With Gauge : No
- Pressure Reducing Valve
- Nominal Size 3"
- End Connection Flanged x Flanged
- End to End Distance 12-1/2"
- Body Material Iron
- Seat Material Stainless Steel
- Downstream Pressure Range 25 to 75 PSI
- Standard Factory Setting 50 PSI
- Strainer Supplied No
- Temperature Rating 33 to 160 Deg F
- Pressure Rating 175 PSI
- Inclusions/Features Sealed Spring Cage
- Application Commercial, Industrial, Plumbing, Water
- Lead Free
- Packaging Quantity 1 per Carton
- Warranty 1 Year Limited
- Install Instructions
Specification Sheet - Lead Free; Enlarged Diaphragm, Spring Cage and Seat Orifice for Super Capacity Performance; Serviceable in Line; Standard Bypass Feature Controls Thermal Expansion Pressure; Sealed Spring Cage on All Models for Accessible Outdoors or Pit Installations; Valves are Designed to Reduce Incoming Water Pressure to a Sensible Level to Protect Plumbing System Components and Reduce Water Consumption; Bypass Feature Permits the Flow of Water Back Through the Valve into the Main When Pressures, Due to Thermal Expansion on the Outlet Side of the Valve, Exceed the Pressure in the Main; Disc Holder Removable for Replacement of Disc Without Dismantling the Valve no Special Tools Required; 1 Year Limited Warranty
