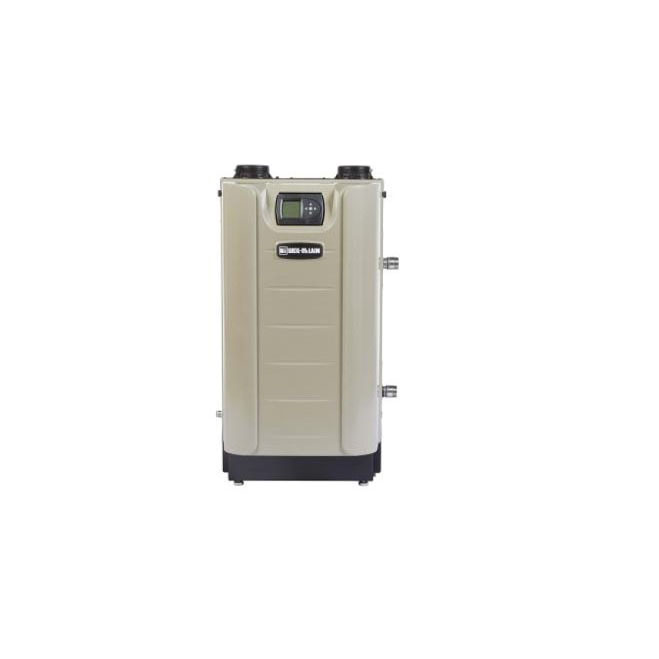

383-900-004 Weil McLain Evergreen 95% AFUE Natural Gas/LP Floor Boiler 57MBH
Part #WMEVG70
MFG #383900004
AFUE : 90.00 - 99.99%
Application : Water
Boiler Type : Heat Only
BTU Output : 50,000 - 74,999
Condensing : Yes
Fuel Type : Natural Gas/Propane
Installation Type : Floor Mount
Manufacturer Name : Weil-Mclain
Venting Type : Direct
- High-Efficiency Condensing Boiler; Ease of Installation; Ease of Use; Interactive Diagnostic Capability; Reliable Operation; Easy to Understand and Monitor Control; Effortless Heating and Comfort in all Zone; Ease of Maintenance; Large, Accessible Panel for Quick and Easy Maintenance Checks; Energy Star Rated
- Install Instructions
Specification Sheet - Residential Gas Fired Water Boiler
- Type Hot Water
- Supply Connection 1 Inch
- Return Connection 1 Inch
- Gas Type Natural/Liquid Propane
- Gas Connection 1/2 Inch Threaded
- AGA Input Rating 70 MBH
- DOE Heating Capacity 65 MBH
- Net IBR Rating 57 MBH
- AFUE Rating 95.2 Percent
- Boiler Dimensions 17-5/8 Inch Width x 18-5/8 Inch Depth x 40-3/4 Inch Height
- Boiler Height Including Draft Hood 42-3/4 Inch
- Water Content 2.5 Gallon
- Burner Type High-Grade Stainless Steel
- Venting Type Direct
- Vent Size 3 Inch
- GPH Recovery 2 GPH
- Mounting Type Floor Standing/Wall Mount
- Options Wall Mount Kit (220-399), Concentric Vent Kit, Condensate Neutralizer Kit, Sidewall Vent/Air Termination Kit, Maintenance Kit, Water Treatment-Inhibitor and Test Kit
- Inclusions/Features Stainless Steel Fire Tube Heat Exchanger, Non-Metallic Heat Exchanger Base, Negative Regulated Combustion, Boiler Circulator, Low Water Cut-Off, Easy Installation with Setup Wizard, Zone and/or Priority Based Control, (3) Thermostat Input, Aux Input-Flow Switch or End Switch, Aux Output-System Pump or Damper, Modbus Connectivity, Additional Heat Demand Contact, Fully Removable Jacket Front Door, Adjustable Boiler Leg, Condensate Trap
- Applicable Standard CSA (Canada and US), ASME H, AHRI, DOE
- Venting Length 100 Foot
- Turndown Ratio 5:1
- Vent/Combustion Air Pipe Size 2 or 3 Inch
- Minimum Recommended Pipe Size 1 Inch
- Vent Material PVC/CPVC/Polypropylene/Stainless Steel
