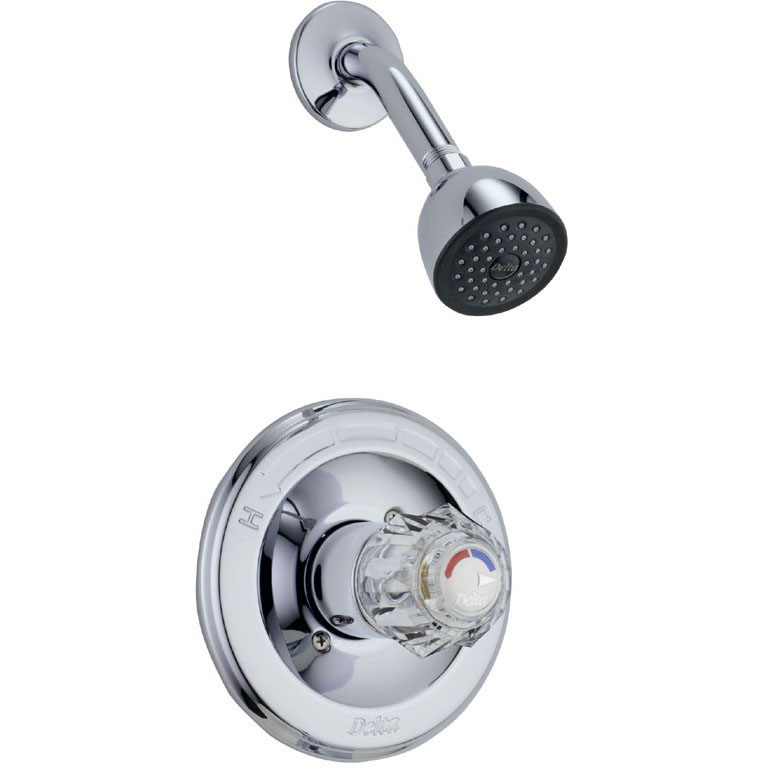

T13222 Classic Monitor 13 Series Shower Trim Chrome
Part #DT13222
MFG #T13222

Manufacturer Name : Delta
- Shower Faucet
- Type Wall Mount
- Applicable Standard ASME A112.18.1/CSA B125.1, ASSE 1016, CSA, UPC
- Handle Type Knob
- Number of Handles 1
- Valve Type Pressure Balancing Mixing Valve
- Shower Head Diameter 2-5/8"
- Shower Head Material Fabricated Solid Brass
- Color/Finish Chrome Plated
- Flow Rate 2 GPM at 80 PSI
- Inclusions/Features Full Body Spray, Back To Back Installation Capability, Field Adjustable, 120 Deg Maximum Handle Rotation
- Overall Dimensions 7" Width x 6-31/32" Depth x 9-1/2" Height
- Warranty 5 Year Limited (Commercial/Industrial/Business Application), Lifetime Limited Warranty Material, Workmanship and Finish Defects to the Original Consumer Purchaser
- Install Instructions
Specification Sheet - Watersense Certification Promotes Water Conservation; Pressure Balance Valve Keeps Water Temperature Within a Safe +/- 3 Degree F +/- 1.6 Degree C, Helping to Protect You from Sudden Changes in Hot or Cold Water Pressure; Soft, Rubber Spray Holes Allow You to Easily Wipe Away Calcium and Lime Build up from the Spray Face of Your Showerhead and Hand Shower with the Touch of a Finger; Trim Kit Only, Must Order Multichoice Universal Rough In Separately to Complete the Unit; 5 Year Limited (Commercial/Industrial/Business Application), Lifetime Limited Warranty Material, Workmanship and Finish Defects to the Original Consumer Purchaser Warranty
