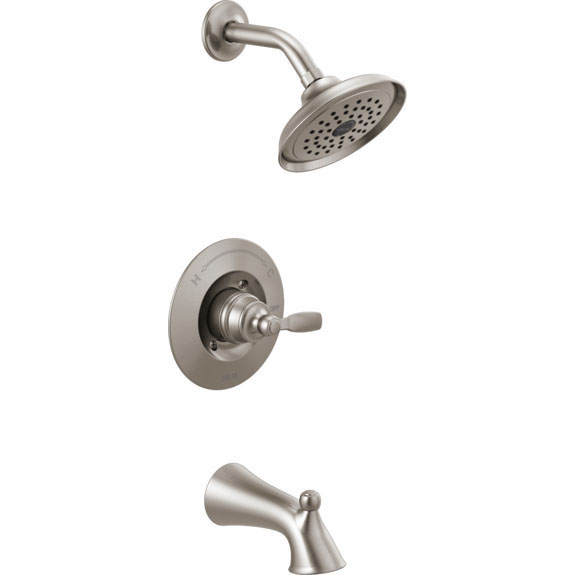

T14432-SS Woodhurst Tub & Shower Trim Stainless Steel
Part #DT14432SS
MFG #T14432-SS
Manufacturer Name : Delta
- Tub and Shower Faucet Trim
- Type 1-Function, 1-Handle, Wall Mount
- Inlet Size 1/2 Inch
- Spout Type Pull-Up Diverter
- Tub Spout Length 6-1/2 Inch
- Valve Type Pressure Balancing Valve
- Number of Valves/Handles 1
- Handle Type Lever
- Handle Material Metal
- Shower Head Diameter 5-7/8 Inch
- Color/Finish Brilliance Stainless
- Inlet Connection CWT/IPS
- Flow Rate 1.75 GPM at 80 PSI
- Inclusions/Features Field Adjustable, Cartridge, 120 Degree Maximum Handle Rotation, Hot/Cold Indicator, Full Body Spray Showerhead
- Used On Item Tub and Shower
- Exclusions Universal Rough-In Valve
- Applicable Standard ADA, ASME A112.18.1/CSA B125.1, ICC/ANSI A117.1, EPA
- Install Instructions
Specification Sheet - Monitor 14 Series Pressure Balanced Single Handle Bath Mixing Valve Trim; Maintain a Balanced Pressure of Hot and Cold Water Even When a Valve is Turned On/Off Elsewhere in the System; Temperature Only Controlled with Handle; Field Adjustable to Limit Handle Rotation into Hot Water Zone; 120 Deg Maximum Handle Rotation; ADA Compliant; WaterSense Certified; Limited Lifetime Warranty
