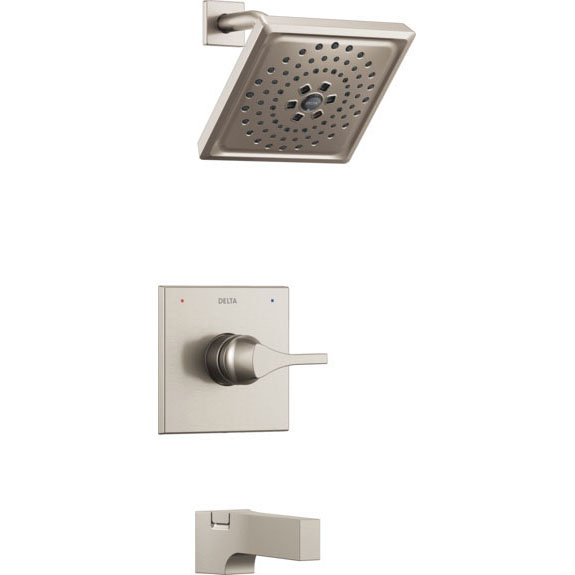

T14474-SS Zura Monitor 14 Series H2OKinetic Tub & Shower Trim Stainless
Part #DT14474SS
MFG #T14474-SS

Manufacturer Name : Delta
- Tub and Shower Faucet Trim
- Type 1-Function, 1-Handle, Wall Mount
- Inlet Size 1/2 Inch-14 TPI
- Spout Type Pull-Up Diverter
- Valve Type Pressure Balancing Valve
- Number of Valves/Handles 1
- Spout Material Metal
- Handle Type Lever
- Handle Material Metal
- Color/Finish Brilliance Stainless
- Inlet Connection IPS
- Flow Rate 1.75 GPM
- Inclusions/Features Field Adjustable, Cartridge, 120 Degree Maximum Handle Rotation, Adjust Temperature Handle, Red/Blue Indicator, Pause, Full Body Spray Showerhead
- Used On Item Tub and Shower
- Exclusions Universal Rough-In Valve
- Applicable Standard ADA, ASME A112.18.1/CSA B125.1, ICC/ANSI A117.1, EPA
- Showerhead Size 7-5/8 Inch Width x 3-3/16 Inch Height
- Install Instructions
Specification Sheet - Monitor 14 Series Pressure Balanced Bath Single Handle Mixing Valve Trim; Maintain a Balanced Pressure of Hot and Cold Water Even When a Valve is Turned on or Off Elsewhere in the System; Back-to-Back Installation Capability; Field Adjustable to Limit Handle Rotation into Hot Water Zone; 120 Deg Maximum Handle Rotation; ADA Compliant; WaterSense Certified; Limited Lifetime Warranty
