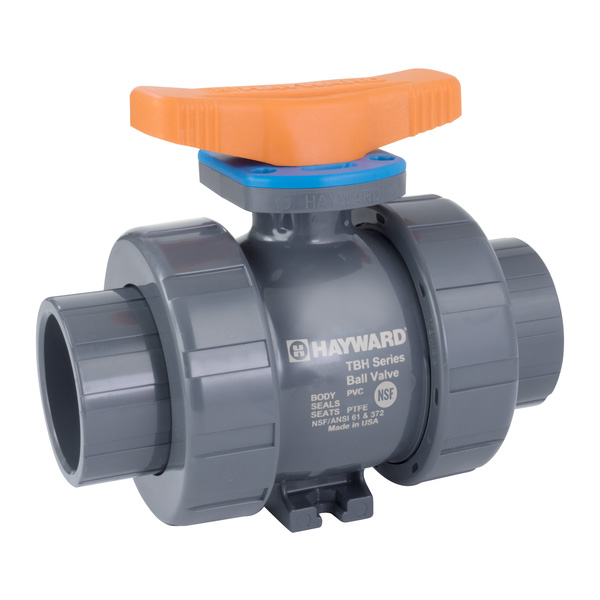

TBH1075ASTV0000 Hayward TBH Series 3/4" PVC Socket/Threaded True Union Ball Valve with FPM Seals
Part #HAYTBH1075ASTV0000
MFG #TBH1075ASTV0000
End Connection : Socket Weld X Female Thread
Manufacturer Name : Hayward
Material : PVC
Valve Size : 3/4"
- Full 250 psi / PN16 Rating up to 2”/DN50 and 235psi/PN16, Non-Shock at 70 DegreeF / 23 DegreeC.
- Integral ISO 5211 Mounting Pad for Easy Actuation
- Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
- System2 Sealing Technology Seat Carrier Design for sizes up to 2”/DN50- Patent Pending
- Permanent Laser Markings, Eliminates Labels
- System friendly "Molded-In" Footpad for Skid or Panel Mount
- UV Resistant Sure Grip Ergonomic Handle
- FPM or EPDM Seals
- Double O-Ring Stem Seals
- Reversible PTFE Seats - Standard
- Easy Replacement for Existing Hayward TB Series
- Install Instructions
Specification Sheet - The TBH Series features a low maintenance design with its new patent pending System2 Sealing Technology for sizes up to 2”/DN50. Sizes 2-1/2” through 6” feature have energized PTFE seats with backing O-ring as standard. All seats are reversible to allow easy field rebuild. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern - on all sizes. Available in sizes 1/4˝ through 6” / DN15 - DN150 in PVC and CPVC materials. The TBH Series are fully pressure rated for 250 PSI / PN16 at 70 DegreeF/23 DegreeC non-shock up to 2”/DN50. Sizes 2-1/2”/DN65 - 4”/DN100 sizes are pressure rated for 235psi at 70 DegreeF non-shock. Lastly, the TBH is available with IPS or DIN/EN and JIS socket, threaded and flanged end connections for global use. “Patented” & Other Patents Pending” Pat. No.: 11,131,404.
