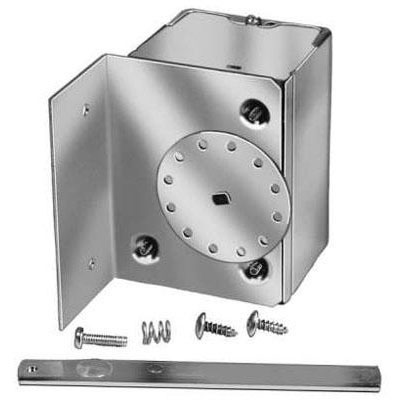

M847A1080/U Honeywell Two Position Draft Damper Actuator
Part #HONM847A1080
MFG #M847A1080/U
Manufacturer Name : Honeywell
- Damper Motor Actuator
- Type 2-Position
- Operation Type Spring Return, Motor
- Voltage Rating 24 Volt AC
- Frequency Rating 60 Hertz
- Torque 1.9 Lb-In
- Angle of Rotation 45 Deg
- Limit Switch Type SPST
- Size 2-5/8" Width x 3-5/16" Depth x 3-1/2" Height
- Operating Temperature 40 to 125 Deg F
- Application Draft Damper, Solid Fuel Furnaces/Boiler
- Inclusion/Features (1) Motor Shafts
- Mounting Type Foot Mount/Direct Coupled
- Operating Humidity Range 50 to 95 Percent RH
- Motor Shaft Type Round
- Run Time 20 Second
- Weight 1.8 Lb
- Install Instructions
- Two-Position Draft Damper Actuators; Use with Two-Wire 24V Room Thermostats or other Low Voltage Controllers to Operate the Draft Damper on Solid Fuel Furnaces or Boilers and other Similar Light Duty Applications; Low Voltage, Spring-Return Damper Actuator; Equipped with Mounting Bracket for Wall, Duct or Direct Appliance Mounting to Control Draft Damper Through an Actuator Arm or Chain Linkage Arrangement; Actuator Wheel Rotates in a Clockwise Direction (When Facing the Wheel) when Energized
