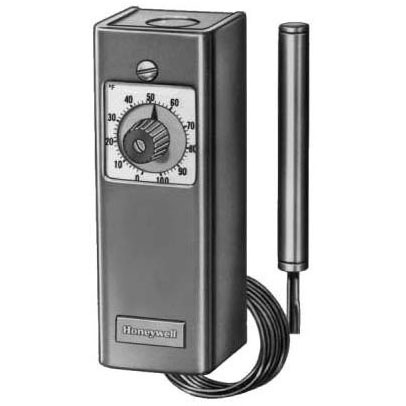

T675A1565/U Honeywell Remote Temperature Control 0-100F
Part #HONT675A1565
MFG #T675A1565/U
Manufacturer Name : Honeywell
- Temperature Controller
- Bulb Type Copper
- Voltage Rating 120/240/277 Volt AC
- Minimum AC Voltage Rating (V) 120 Volt
- Maximum AC Voltage Rating (V) 277 Volt
- Frequency Rating 50/60 Hertz
- Operating Temperature 125 Deg F
- Size 2" Width x 2-5/8" Depth x 5-5/8" Height
- Application Boiler, Tank, Pipe, Duct, Heating, Cooling
- Approval UL, CSA
- Differential Temperature Rating 3 to 10 Deg F
- Setpoint Temperature Rating 0 to 100 Deg F
- Output Type Relay
- Switching Action SPDT
- Bulb and Capillary Size 1/2" x 4-3/16"
- Capillary Length 20'
- Includes Duct Bulb Holder
- Packaging Quantity 4
- Weight 1.6 Lb
- Install Instructions
Specification Sheet - Remote Bulb Thermostats Regulate Temperature of Air or Liquids in Ducts, Pipes, Tanks and Boilers; Suitable for Applications Requiring Temperature Control of Air or Liquids Where Controller Must be Placed Outside the Sensing Area; Typical Uses Include Control of Dampers and Valves in Heating, Cooling and Heating-Cooling Systems; Fast Response Models (Available for use in Return Air Duct) Operate Approximately Four Times Faster than Standard Models; Controller can be Mounted in any Position; Ambient Temperature Compensation Provides Good Temperature Control; Refer to T775 Electronic Remote Temperature Controller Where more Exact Control is Required And/or Remote Controller Location is Preferred; T675A Models with Fixed Differential have an Electrical Rating of 125 Va at 120/208/240 and 277 Volt Ac; T675A has One Single-Pole, Double Throw(Spdt) Switch that Breaks R-B and Makes R-W at the Set Point on a Temperature Rise; T675A Models Available with an Adjustable Differential, Fast Response Sensing Element
