Mitsubishi

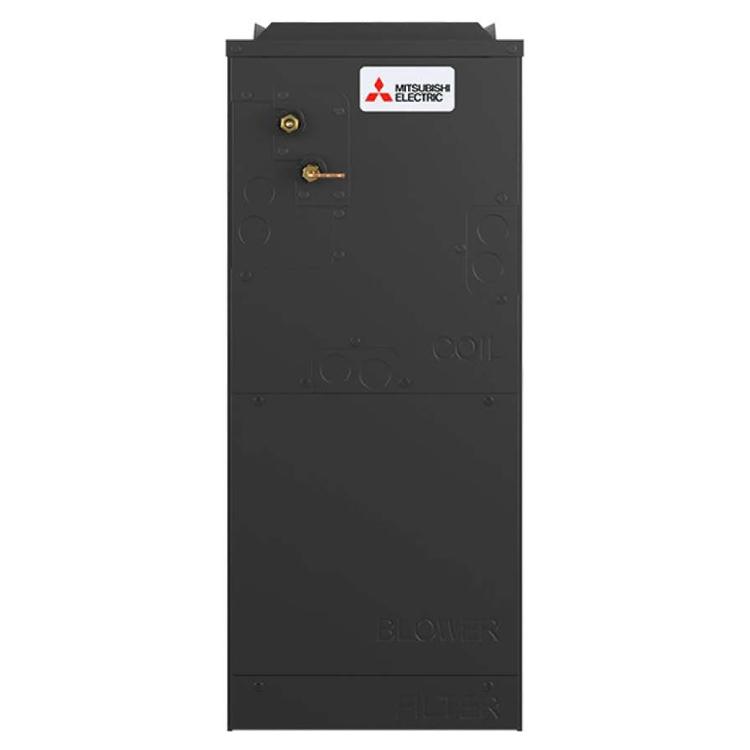

SVZ-AP60NL Mitsubishi 60k BTU Multi-Position Air Handler R-454B
Part #MITSVZAP60NL
MFG #SVZ-AP60NL
Brand : Mitsubishi
Brand : Mitsubishi
Cooling Capacity (BTU) : 60000
Heating Capacity (BTU) : 60000
Installation Type : Ducted
Refrigerant : R-454B
Unit Type : Indoor
- Install Instructions
Specification Sheet - Unique blow through design: Unique blow through design allows simple coil cleaning when the blower is removed
- Selectable external static pressure: Selectable external static pressure: 0.30, 0.50 and 0.80 in.WG with 3 fan speeds at each static setting
- Positive pressure cabinet: Positive pressure cabinet with air leakage of less than 1.0% at 1.0 in.WG
- Optional humidifier control and ERV control
- Optional electric heat kit: Optional electric heat kit for additional heat capacity
- Multiple control options, including the comfort app for remote access, third-party interfaces, and both wired and wireless controllers
- Multi-zone: A multi-zone unit provides the temperature management of multiple zones within a building
- Multi-position installation: Multi-position installation: horizontal (left or right), vertical (up or down). For downflow configurations, the CMA-1 is recommended for proper management of condensate to prevent water blow-off in certain conditions
- Fiberglass free insulation: 1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency
- Enclosed ECM motor: Highly efficient totally enclosed ECM motor
- Ducted air handler: Ducted air handler provides a solution to cool and heat large zones
