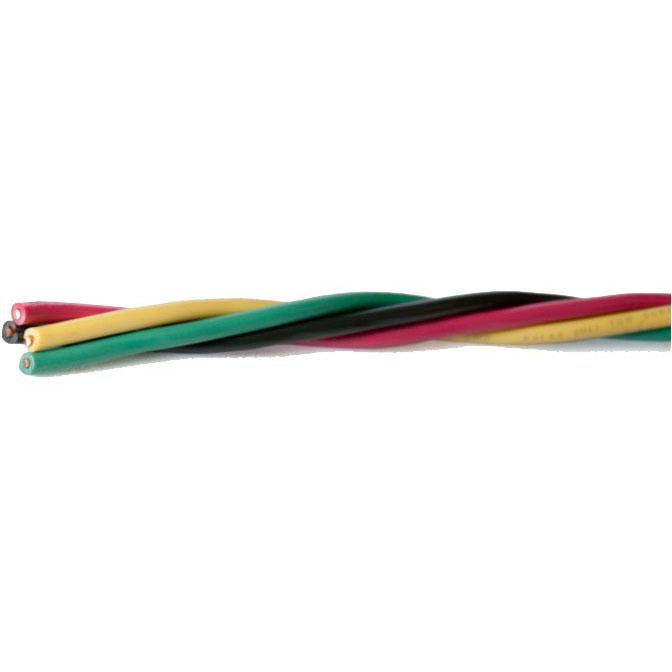

SOU83PW Southwire 8/3 X Twisted Pump Wire With Ground Per Foot
Part #SOU83PW
MFG #SOU83PW
Length : 1'
Manufacturer Name : Southwire
Option : Twisted
Type : Wire
Wire Gauge : 8/3
- Submersible Pump Cable
- Type Twisted, Submersible Pump Cable
- Voltage Rating 600 Volt
- Number of Conductors 3
- Ground Type Yes
- Conductor Size 8 AWG
- Ground Conductor Size 10 AWG
- Stranding 19/0.0295" Strands, Solid/0.1019" (Ground)
- Conductor Material Bare Copper
- Insulation Material PVC
- Outer Diameter 0.608"
- Length 1'
- Temperature Rating -40 to 75 Deg C
- Weight 273 Lb/Ft
- Approval UL 83, RoHS
- Type THW
- Insulation Thickness 0.06"
- Specification Sheet
- Resistant to Acid, Abrasion, Alkalis, Flame, Gas, Oil, Water
