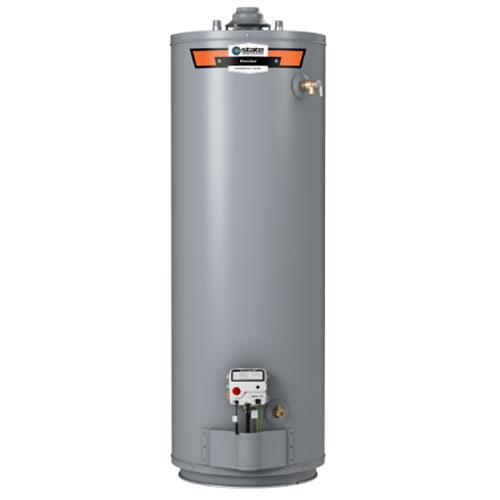

GS6-40-BRBT-401 State 40 Gallon 6 Year Atmospheric Vent LP Gas Water Heater
Part #STAGS640BRBT401
MFG #GS6-40-BRBT-401
Capacity : 40 Gallons
Manufacturer Name : State
Option : Tall
Type : Propane
Warranty : 6 Years
- Gas Water Heater
- Type Tall
- Applicable Standard UBC, CEC, HUD, ANSI Z21.10.3/CSA 4.1, ASHRAE/IESNA 90.1, CSA, FEC, EPCA
- Inlet/Outlet Connection 3/4" Threaded Top x 3/4" Threaded Top
- Gas Type Propane
- Gas Connection 1/2"
- Relief Valve Details CSA/ASME T and P Relief Valve Supplied
- Venting Type Atmospheric
- Draft Hood Outlet/Vent Size 3", 4"
- Input Supply Rating 36000 BTU/HR
- Tank Dimensions 18" Diameter x 58-1/4" Height
- Tank Height Including Draft Hood 61-3/4"
- Tank Material Blue Diamond Glass Coating
- Tank Capacity 40 Gallon
- Tank Warranty 6 Year Limited
- GPH Recovery 42 GPH at 90 Deg F
- Ignition Type Piezo Push-Button Spark
- Drain Valve Details Ball Type, Enhanced-Flow, Tamper Resistant Solid Brass
- Insulation Details Non-CFC Foam
- Burner Type Patented Eco-Friendly Low-NOx Green Choice Gas
- Energy Saver Conformance No
- Inclusions/Features Intelligent Control Logic, High Energy Factors, Self Cleaning Dip Tube, LED Status Indicator, Coregard Anode Rod, Heat Trap Nipples, Insulation Blanket
- Energy Factor 0.62
- Maximum Hydrostatic Working Pressure 150 PSI
- Test Pressure 300 PSI
- Parts Warranty 6 Year Limited
- Install Instructions
Specification Sheet - The Proline Series gas water heater is designed to deliver an economical performance that can lower your energy bills and also provide long-lasting value. Featuring a 30-gallon (nominal) tank and a 36,000 BTU propane burner, the GS6-30-ORBT (LP) Atmospheric Vent delivers a first hour rating of 78 gallons and a recovery rate of 36 gallons per hour. With an 0.65 Uniform Energy Factor, this water heater is not Energy star qualified. It carries a 6-year limited tank warranty, and meets Low NOx emission requirements.
