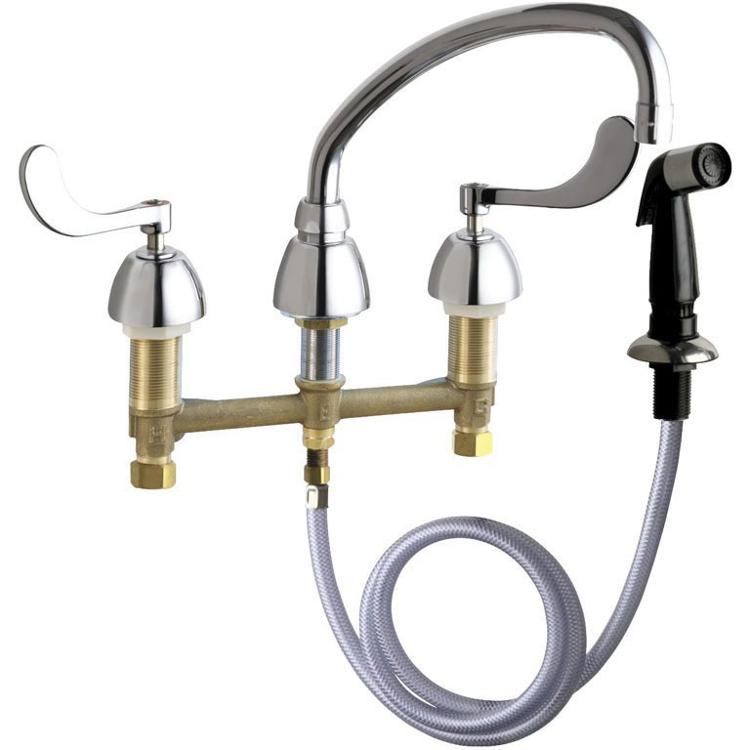

200-A317ABCP Deck-Mounted Manual Kitchen Sink Faucet With 8" Centers Chrome
Part #CHI200A317ABCP
MFG #200-A317ABCP
Color/Finish : Chrome
Faucet Holes : 4
Flow Rate : 2.20 GPM
Handles : 2
Manufacturer Name : Chicago
- Sink Faucet
- Type Deck Mount
- Applicable Standard ADA, ANSI/ICC A117.1, ASME A112.18.1/CSA B125.1, NSF/ANSI 61/372, CSA (Canada and US)
- Inlet Size 1/2"
- Spout Type Swing
- Spout Dimensions 8-1/8" Height x 5-5/8" Clearance x 9-1/2" Reach
- Body Material Cast Brass
- Handle Type Wrist Blade
- Handle Material Metal
- Color/Finish Chrome Plated
- Aerator Type Vandal Resistant
- Inlet Connection Threaded
- Faucet Hole Center 8"
- Flow Rate 2.2 GPM
- Inclusions/Features Sixteen Point Tapered Broach, Secured Blue and Red Button
- Used on Item Bathroom Sink
- Pressure Rating 20 to 125 PSI
- Operating Temperature 40 to 140 Deg F
- Weight 6.09 Lb
- Warranty Lifetime Limited
- Install Instructions
Specification Sheet - Ecast Construction with Equal to or Less than 0.25 Percent Lead Content by Weighted Average; Quaturn Compression Operating Cartridge; 3/8" Coupling Nut, 1/2" Flexible Riser; Lifetime Limited Warranty
