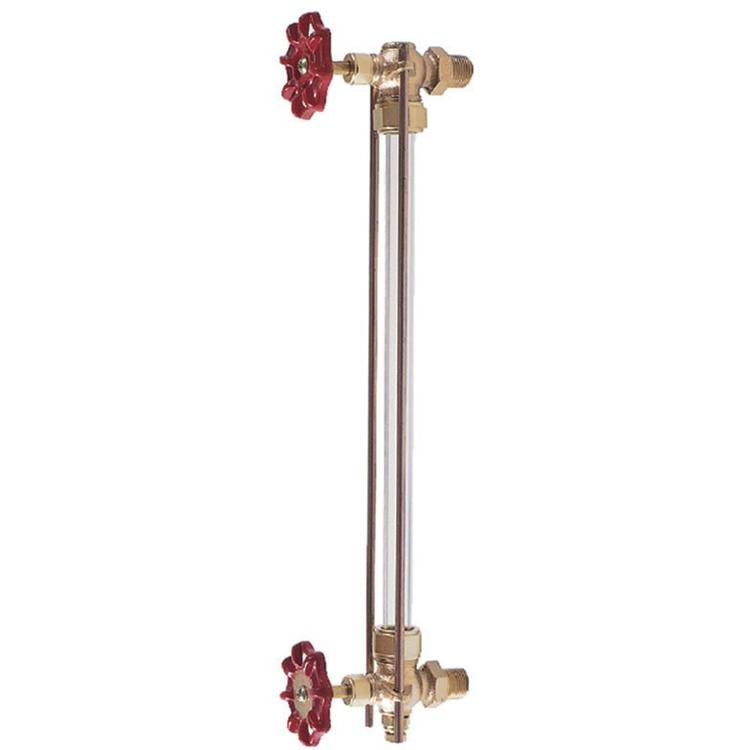

2010400 Conbraco 1/2" Gauge Glass Set With Bronze Gauge
Part #CON2010400
MFG #20-104-00

Manufacturer Name : Conbraco
- Water Gauge
- Type Standard Pattern
- Applicable Standard CRN OF6616.5C
- Pipe Size 1/2"
- Gauge Connection Threaded
- Tube Diameter 5/8"
- Tube Length 12"
- Body Material Rough Bronze
- Pressure Rating 125 PSIG at 350 Deg F, 300 PSIG at 100 Deg F
- Inclusions/Features Aluminum Hand Wheel, EPDM Gauge Glass Gasket, Automatic Ball Check, Non-Stick Stem Packing, Standard Glass and Rod
- Weight 1.6 Lb
- Install Instructions
Specification Sheet - Automatic Ball Checks Help Prevent the Loss of Fluids Should the Glass be Broken; Equipped with Two Copper Guard Rods; Standard 1/4" Needle Drain Valve in Lower Arm
