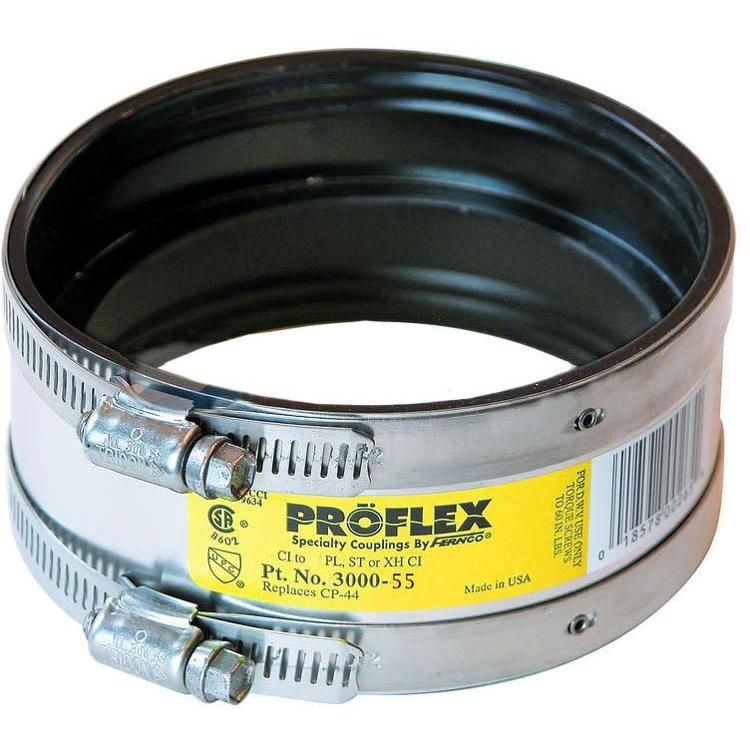

3000-55 Fernco Proflex 5" Cast Iron/Plastic Shielded Coupling
Part #FER300055
MFG #3000-55
Fitting Size : 5"
Fitting Type : Coupling
Manufacturer Name : Fernco
Material : 301 Stainless Steel
- Coupling Fitting
- Type Shielded Transition
- Applicable Standard CSA B602, UPC, ICC-ES PMG
- Size A 5"
- Size B 5"
- Schedule 40 S
- End Connection Cast Iron x Extra Heavy Cast Iron/Plastic/Steel
- Material 301 Stainless Steel Band/Housing, 305 Stainless Steel Screw
- Material Specification ASTM C1460
- Pressure Rating 4.3 PSI
- Temperature Rating -30 to 180 Deg F
- Gasket Supplied Yes
- Gasket Details ASTM C564 Neoprene
- Application DWV
- Shield Assembly Material Requirements 301 Stainless Steel Shield, 305 Stainless Steel Eyelet
- Installation Torque 60 In-Lb
- Install Instructions
Specification Sheet - Proflex is a shielded transition pipe coupling that allows you to make pipe connections that are resistant to shear forces, while creating a rigid, long-lasting pipe joint. From 3/4" to 8" pipe diameters - Proflex connects cast iron, plastic, steel, copper and tubular, drain waste and vent systems for above-ground applications.
