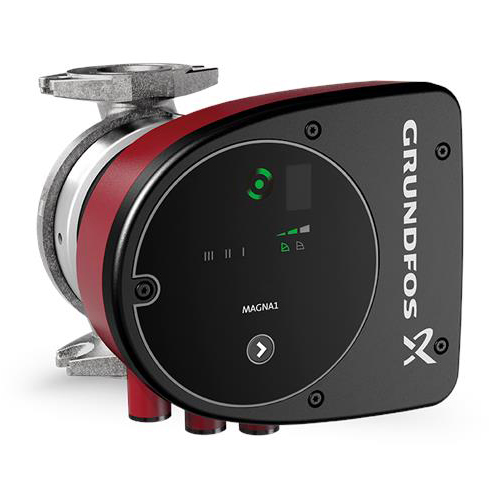

98126825 Grundfos MAGNA1 32-100 FN Stainless Steel Circulator Pump 115/230V 1/6 HP 1PH GF 15/26 Variable Speed
Part #GRUMAGNA132100FNSS
MFG #98126825
Manufacturer Name : Grundfos
- Circulator Pump
- Applicable Standard ETL
- Suction Size 32 MM
- Discharge Size 32 MM
- End Connection Flanged x Flanged
- Flow Rate 0 to 52 GPM
- Discharge Head 100 Decimeter
- Casing Material Cast Iron
- Shaft Material Stainless Steel
- Impeller Material PES
- Power Rating 10 to 180 Watt
- Input Supply Rating 230 Volt AC at 50/60 Hertz 1 Phase
- Temperature Rating 200 Deg F
- Pressure Rating 145 PSI
- Motor Type Permanent Magnet
- Inclusions/Features Integrated Frequency Converter, Patented Autoadapt Function Control
- Application Heating Systems in Multi-Family Housing, School, Hospital, Hotel, Industry
- Enclosure Type NEMA 2/IPX4D
- Insulation Class F
- Leakage Current 3.5 Milliampere
- Sound Level 43 dBA
- Specification Sheet
- The Grundfos MAGNA1 circulator pump is the simple option for a job well done. With its high energy efficiency the product lives up to the EuP 2015 regulations ensuring substantial savings on electricity, and with its intuitive, user-friendly interface and maintenance-free design, MAGNA1 is the ideal circulator pump for applications with basic performance needs. The pump is maintenance-free due to the canned-rotor type design.
