Nibco

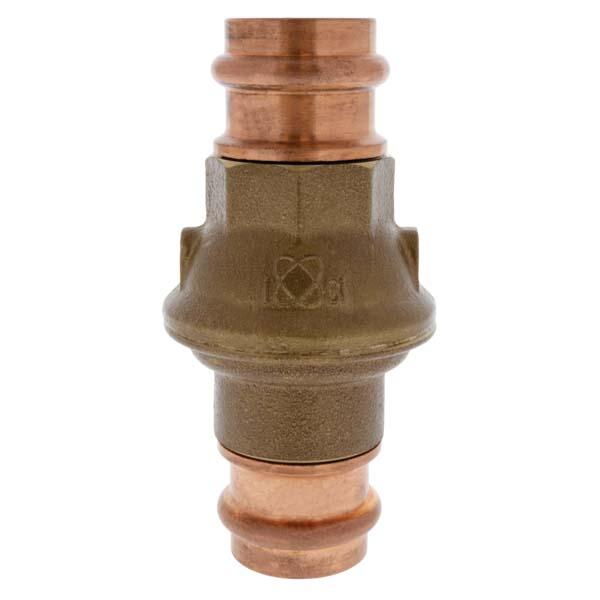

PC-480-Y-LF Nibco 1-1/2" Press Domestic Lead Free Bronze In-Line Spring Check Valve With Teflon Seat
Part #NIBPC480YLF112
MFG #NF932XC
Brand : Nibco
End Connection : Press
Material : Bronze
Valve Size : 1-1/2"
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- Maximum temperature rating 300 Degree F at 100 psi
- In-line lift type
- Resilient discs
- Spring actuated
- Press x press female end connections
- Dezincification resistant
- Lead-free
- NSF/ANSI/CAN-61 and 372
- Conforms to MSS SP-139
- Install Instructions
Specification Sheet - The Nibco lead-free bronze Ring Check valve features press x press end connectionswith an inboard bead and EPDM O-rings for quick and easy joinery to the piping system. Simply applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux.
