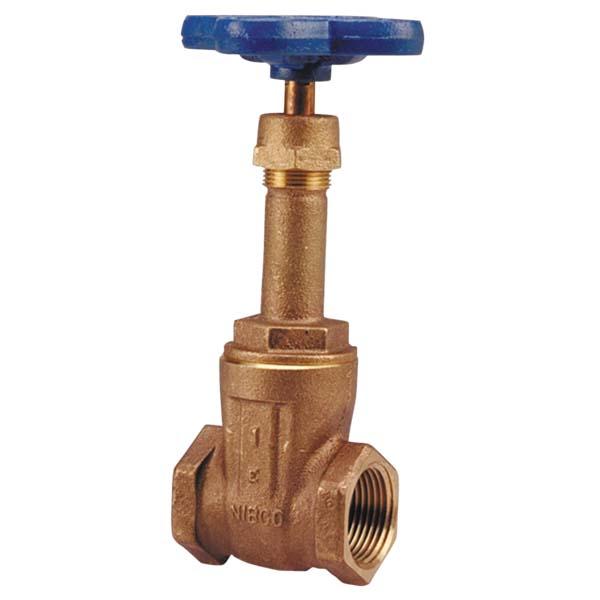

T-111 1/2 125# BRZ THR RS GATE VALVE
Part #NIBT11112
MFG #NL05006
End Connection : Female Thread
Manufacturer Name : Nibco
Material : Bronze
Valve Size : 1/2"
- Gate Valve
- Type Solid Wedge
- Applicable Standard MSS SP-80
- Actuation Type Handwheel
- Nominal Size 1/2"
- Stem Design Rising
- End Connection Female Threaded x Female Threaded
- End to End Distance 1.94"
- Bonnet Type Threaded
- Body Material ASTM B62 Bronze
- Stem Material ASTM B371 C69400/C69430 Silicon Bronze Alloy
- Seal Material Aramid Fiber with Graphite Packing
- Wedge Material ASTM B62 Bronze
- Bonnet Material ASTM B62 Bronze
- Handle Material ASTM A47 Malleable Iron
- Temperature Rating 353 Deg F
- Pressure Rating Class 125, 200 PSI Non-Shock CWP
- Inclusions/Features Dezincification Resistant, Screw-in Bonnet, 300 Series Stainless Steel Hand wheel Nut, Bronze Packing Nut/Packing Gland, Integral Seat
- Application Commercial, Mechanical, Industrial, Hot Water, Cold Water, HVAC, Steam, Compressed Air, Gas, Utility Services
- Packaging Quantity 50 Per Master Carton
- Weight 0.87 Lb
- Warranty 5 Year Limited
- Install Instructions
Specification Sheet - The Nibco bronze gate valve features a screw-in bonnet for service where infrequent maintenance is required. Female threaded ends allow for ease of installation. Rising stem gate valves are used when shutoff is required and a quick visual indicator of open/closed position is needed. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services.
