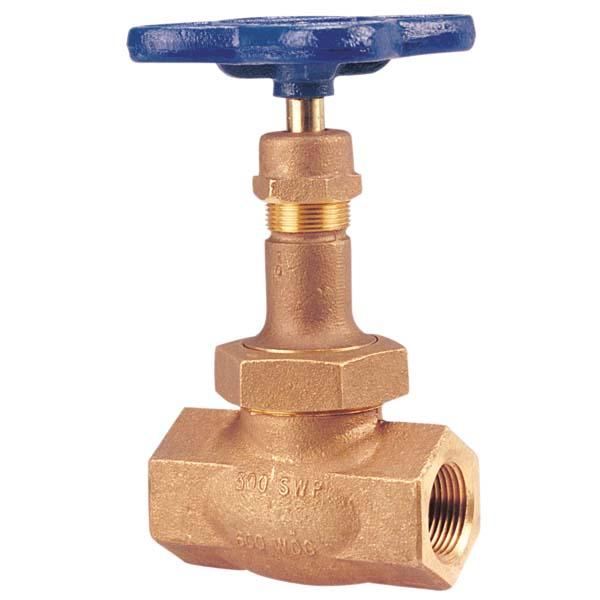

T275-Y 2-1/2 300# BRZ THR GLOBE VLV TFE SEAT
Part #NIBT275Y212
MFG #NL3X00E
End Connection : Female Thread
Manufacturer Name : Nibco
Material : Bronze
Valve Size : 2-1/2"
- Globe Valve
- Type Globe
- Applicable Standard MSS SP-80
- Actuation Type Handwheel
- Nominal Size 2-1/2"
- End Connection Female Threaded x Female Threaded
- End to End Distance 6.63"
- Bonnet Type Union
- Bonnet Material ASTM B61 Bronze
- Body Material ASTM B61 Bronze
- Stem Material ASTM B371 C69400/C69430 Silicon Bronze Alloy
- Seal Material Aramid Fibers with Graphite Packing
- Disc Material PTFE
- Handle Material ASTM A47 Malleable Iron
- Temperature Rating 421 Deg F
- Pressure Rating Class 300, 600 PSI Non-Shock CWP
- Inclusions/Features Dezincification Resistant, Integral Seat, Renewable Seat Disc, 300 Series Stainless Steel Handwheel Nut, Aluminum Identification Plate, Bronze/Brass Packing Nut, Bronze Union Nut/Disc Holder Nut/Seat Disc/Seat Disc Nut/Disc Holder
- Application Commercial, Industrial, Hot and Cold Water, HVAC, Steam, Compressed Air, Gas, General Utility Services
- Weight 17.39 Lb
- Packaging Quantity 2 per Master Box
- Warranty 5 Year Limited
- Install Instructions
Specification Sheet - The Nibco bronze globe valve is recommended for bi-directional service in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. The globe valve is used for throttling or regulating flow.
