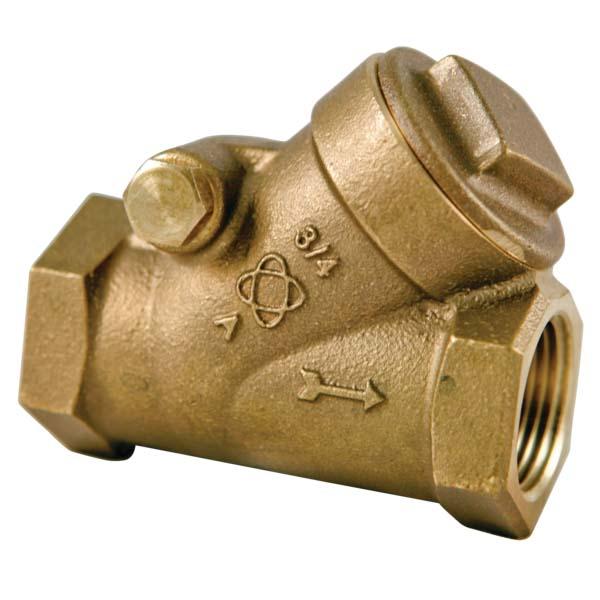

T-413-Y-LF Nibco 1-1/4" IPS Domestic Lead Free Bronze Swing Check Valve With Teflon Seat #125
Part #NIBT413YLF114
MFG #NL740XB
End Connection : Female Thread
Manufacturer Name : Nibco
Material : Bronze
Valve Size : 1-1/4"
- Check Valve
- Type Y Pattern, Horizontal Swing, Screw-In Bonnet, Regrinding
- Applicable Standard ANSI/NSF 61/372, MSS SP-80/139
- Nominal Size 1-1/4"
- End Connection Female Threaded x Female Threaded
- End to End Distance 4.19"
- Body Material ASTM B584 C87850 Silicon Bronze Alloy
- Disc Material PTFE
- Seat Material PTFE
- Temperature Rating 300 Deg F
- Pressure Rating Class 125, 100 PSI at 300 Deg F, 200 PSI Non-Shock CWP
- Inclusions/Features Dezincification Resistant, Renewable Disc, Renewable/Integral Seat, Silicon Bronze Alloy Bonnet/Disc Hanger, 316/304 Stainless Steel Nut/Hinge Pin/Seat Disc Washer, Silicon Bronze Alloy Hinge Pin Plug/Disc Holder
- Application Commercial, Residential
- Lead Free
- Packaging Quantity 20 Master per Carton
- Weight 2.17 Lb
- Warranty 5 Year Limited
- Install Instructions
Specification Sheet - The Nibco horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The check valve features threaded end connections for ease of installation. The check valve is constructed of high quality lead-free dezincification-resistant (DZR) performance bronze silicon alloy per ASTM specifications. The lead-free valve is recommended for applications that deliver water for human consumption, including commercial and residential construction.
