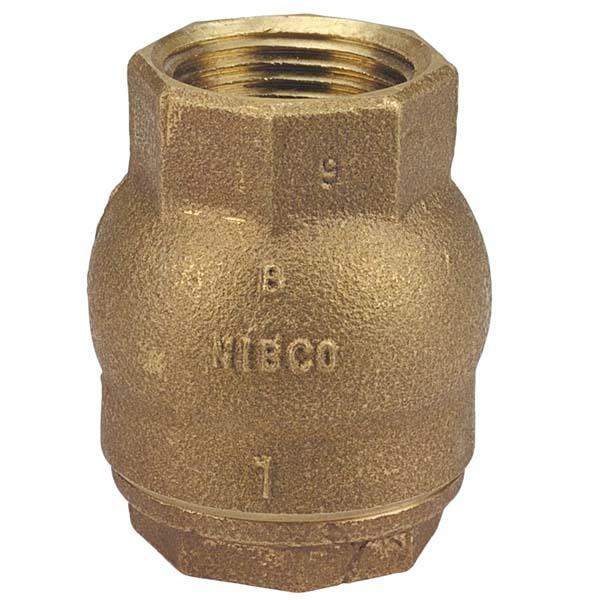

T-480-Y Nibco 2" IPS Domestic Bronze In-Line Spring Check Valve With Teflon Seat

Name: T-480-Y Nibco 2" IPS Domestic Bronze In-Line Spring Check Valve With Teflon Seat
Brand: Nibco
SKU: NL9318D

Part #NIBT480Y2

MFG #NL9318D

Please Sign In into your account to see price and availability.

Brand : Nibco

End Connection : Female Thread

Material : Bronze

Valve Size : 2"

125 psi/8.6 bar saturated steam to 353 Degree F/178 Degree C
Valve pressure rating 200 psi/14 bar non-shock cold working pressure
In-line lift-type
Spring actuated (1/2 psi cracking pressure)
PTFE resilient seat disc
Class 125 threaded end connections
Use in U.S. drinking water applications is prohibited after January 3, 2014
Conforms to MSS SP-80

Install Instructions
Specification Sheet

The Nibco bronze Ring Check valve is uniquely designed with an in-line, spring assisted self-closing disc. The lift check valve prevents backflow by automatically closing when fluid reverses direction. With a PTFE disc, the check valve is recommended for steam service.
