Nibco

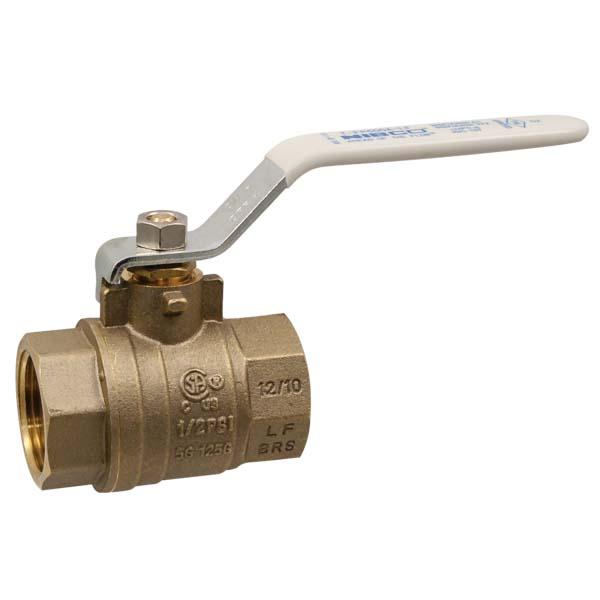

T-FP600A-LF Nibco 2" IPS Lead Free Brass Full Port Ball Valve
Part #NIBTFP600ALF2
MFG #NL998XD
Brand : Nibco
End Connection : Female Thread
Material : Brass
Valve Size : 2"
- Ball Valve
- Type 2-Piece
- Applicable Standard ANSI/NSF 61/372, ANSI Z21.15/CSA 9.1, ASME B16.44/B16.33, MSS SP-110, IAPMO IGC-157, UL, FM, CUPC, CSA (Canada and US)
- Actuation Type 1/4 Turn, Lever Handle
- Nominal Size 2"
- End Connection Female Threaded x Female Threaded
- End to End Distance 4.18"
- Ball Material Stainless Steel/Chrome Plated Brass
- Body Material Brass
- Stem Material Brass
- Seat Material PTFE
- Seal Material PTFE
- Handle Material Plated Steel
- Port Type Full
- Pressure Rating 600 PSI Non-Shock CWP
- Inclusions/Features Blow-Out Proof Stem, Stainless Steel Handle Nut, End Cap, Corrosion Resistance
- Application Commercial, Residential, Gas, Water
- Packaging Quantity 2 per Box
- Warranty 2 Year Limited
- Install Instructions
Specification Sheet - The Nibco lead-free brass ball valve with threaded end connections provides bubble-tight shutoff. The valve's PTFE seats and lead free ball exhibit high corrosion resistance properties. The valve is ideal for hot/cold water and gas applications.
