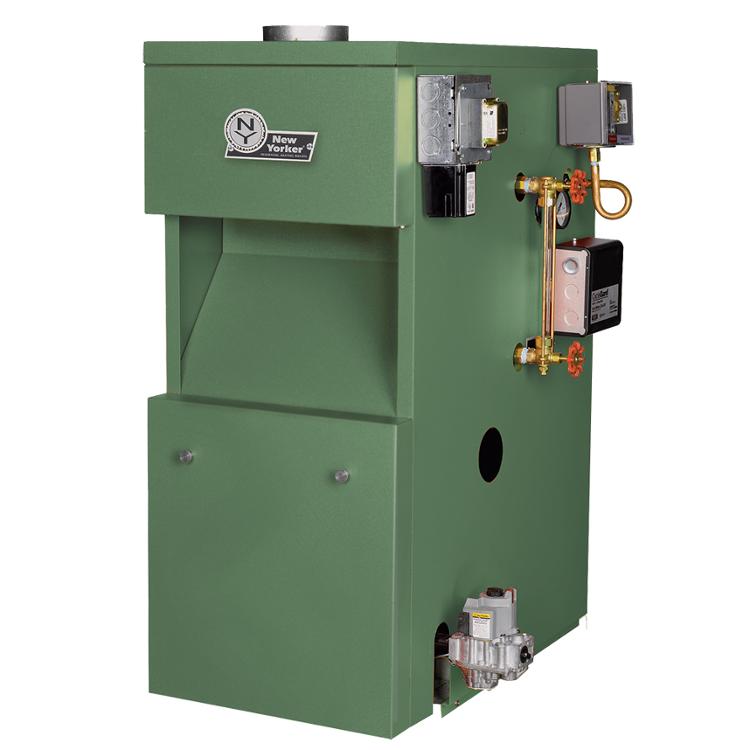

CGS40CNI-H New Yorker 81.9% AFUE Cast Iron Steam Natural Gas Boiler 103 MBH With LWCO
Part #NYCGS40CNIH
MFG #CGS40CNI-H
AFUE : 80.00 - 84.99%
Application : Steam
Boiler Type : Heat Only
BTU Output : 100,000 - 124,999
Condensing : No
Fuel Type : Natural Gas
Installation Type : Floor Mount
Manufacturer Name : New Yorker
Venting Type : Atmospheric
- Gas Boiler
- Type Steam
- Applicable Standard ASME H, ETL (Canada and US), AHRI
- Supply Connection 2" Threaded
- Return Connection 2" Threaded
- Gas Type Natural
- Gas Connection 1/2" Threaded
- AGA Input Rating 103 MBH
- DOE Heating Capacity 84 MBH
- Net IBR Rating 63 MBH
- AFUE Rating 82 Percent
- Boiler Dimensions 16" Length x 28" Width x 40-7/16" Height
- Boiler Material Cast Iron
- Water Content 6.5 Gallon
- Ignition Type Electronic
- Burner Type Aluminized, Stainless Steel
- Venting Type Horizontal
- Relief Valve Details Supplied
- Pressure Rating 15 PSI
- Mounting Type Floor Mount
- Warranty 10 Year Limited
- Options Intermittent Ignition System
- Inclusions/Features Insulated Jacket, Pressure Limit, Safety Valve, Honeywell Gas Valve, Probe Type LWCO, Steam Pressure Gauge, Built-In Draft Diverter, Flame Roll Out Switch, Blocked Vent Switch, Vent Damper, Drain Valve
- Number of Sections 4
- Capacity 263 Sq Ft
- Flue Collar Diameter 5"
- Install Instructions
Specification Sheet - Fully Packaged; Insulated Jacket; Pressure Limit; 15 PSI Safety Valve; Honeywell Gas Valve; Lwco Probe Type; Steam Pressure Gauge; Flame Roll Out Switch; Blocked Vent Switch; Vent Damper; Drain Valve; Built-In Draft Diverter Fit's in Low Spaces; Natural or LP Gas; Cast Iron Heat Exchanger; Electronic Ignition; Stainless Steel Burners; Metal Section Connectors Resist Chemicals, Increases the Life of the Boiler; 10 Year Limited Warranty
