State

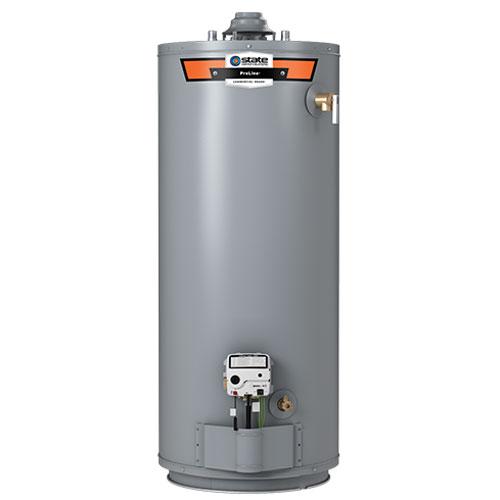

GS6 40 BCS 400 State 40 Gallon 6 Year Short Atmospheric Vent Natural Gas Water Heater
Part #STAGS640BCS400
MFG #100327645
Brand : State
Capacity : 40 Gallons
Option : Short
Type : Natural Gas
Warranty : 6 Years
- Gas Water Heater
- Type Short
- Applicable Standard UBC, CEC, HUD, ANSI Z21.10.3/CSA 4.1, ASHRAE/IESNA 90.1, CSA, FEC, EPCA
- Inlet/Outlet Connection 3/4" Threaded Top x 3/4" Threaded Top
- Gas Type Natural
- Gas Connection 1/2"
- Relief Valve Details CSA/ASME T and P Relief Valve Supplied
- Venting Type Atmospheric
- Draft Hood Outlet/Vent Size 3", 4"
- Input Supply Rating 40000 BTU/HR
- Tank Dimensions 22" Diameter x 48" Height
- Tank Height Including Draft Hood 51-1/2"
- Tank Material Blue Diamond Glass Coating
- Tank Capacity 40 Gallon
- Tank Warranty 6 Year Limited
- GPH Recovery 41 GPH at 90 Deg F
- Ignition Type Piezo Push-Button Spark
- Drain Valve Details Ball Type, Enhanced-Flow, Tamper Resistant Solid Brass
- Insulation Details Non-CFC Foam
- Burner Type Patented Eco-Friendly Low-NOx Green Choice Gas
- Energy Saver Conformance No
- Inclusions/Features Intelligent Control Logic, High Energy Factors, Self Cleaning Dip Tube, LED Status Indicator, Coregard Anode Rod, Heat Trap Nipples
- Energy Factor 0.62
- Maximum Hydrostatic Working Pressure 150 PSI
- Test Pressure 300 PSI
- Parts Warranty 6 Year Limited
- Install Instructions
Specification Sheet - The Proline Series gas water heater is designed to deliver an economical performance that can lower your energy bills and also provide long-lasting value. Featuring a 40-gallon (nominal) tank and a 40,000 BTU gas burner, the GS6-40-BCS Atmospheric Vent delivers a first hour rating of 67 gallons and a recovery rate of 41 gallons per hour. With an 0.59 Uniform Energy Factor, this water heater is not Energy star qualified. It carries a 6-year limited tank warranty, and meets Low NOx emission requirements.
