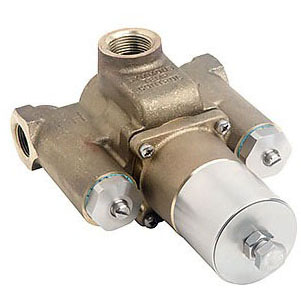

7-400 Tempcontrol Thermostatic Mixing Valve
Part #SYM7400
MFG #7-400
Manufacturer Name : Symmons
- Tub and Shower Thermostatic Mixing Valve
- Type Thermostatic
- Applicable Standard ASME A112.18.1/CSA B125.1, CSA (Canada and US), CSA B125.3, ASSE 1017, CA 116875, NSF 61.9/372
- Inlet Size 3/4"
- Valve Material Brass
- Number of Valves/Handles 1
- Inlet Connection Female Threaded
- Outlet Connection 1" Female Threaded
- Flow Rate 0.5 to 9 GPM
- Inclusions/Features Serviceable Integral Check Stop
- Lead Free
- Overall Size 6-1/2" Length x 9-3/4” Width x 4-1/8" Depth
- Warranty 5 Year
- Install Instructions
Specification Sheet - Symmons Tempcontrol Valves have been the Trusted Choice of Contractors and Engineers where Dependable Temperature Control is Required; Tempcontrol's Durable Brass, Bronze and Stainless Steel Design Display Symmons Dedication to Quality and Commitment to Reliability; Precise Temperature Control; 3/4" Tamper Resistant Hex Bolt; Control Knob Available; Safety Lock Nut Prevents Unwanted Temperature Adjustments; 1-Piece Valve Cartridge; 7 Series Cartridge and Repair Parts are Interchangeable with 5 and 6 Series Models; 0.25 Percent Average Lead Content with Respect to Wetted Surfaces; 5 Year Warranty
