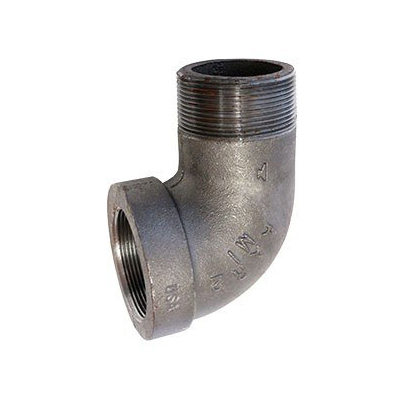

2" Domestic Extra Heavy Black Malleable Iron Street 90 Elbow
Part #2DXHBMIST90
MFG #2.B300SL

End Connection : Male Thread X Female Thread
Fitting Size : 2"
Fitting Type : 90 Elbow
Manufacturer Name : Ward
Material : Malleable Iron
- Elbow Fitting
- Type Street
- Applicable Standard ANSI/ASME B1.20.1, ASME B16.3, UL, ULC, FM, NSF 61/61G
- Angle 90 Degree
- Size A 2"
- Size B 2"
- Thickness XH
- End Connection Female Threaded X Male Threaded
- Material Malleable Iron
- Material Specification ASTM A197/A153/B633
- Process Machined
- Finish Black
- Pressure Rating Class 300, 1500 PSI at -20 to 150 Deg F
- Temperature Rating 550 Deg F
- Application Piping
- Center to End Distance 2.50" to Female and 3.69" to Male
- Outside Diameter 3.28"
- Packaging Quantity 6 Per Inner Pack, 12 Per Master Carton
- 1 Year Warranty
- Warranty 1 Year
- Ward Class 300 Malleable Iron Fittings are Designed to Handle Higher Pressures and More Rugged Service than Class 150 Fittings; Class 300 Fittings are Made with the Most Sophisticated Metallurgical and Processing Controls Available; Ward's Quality Assurance Program Ensures that the Iron is Made with High Quality Raw Materials and Processed According to Rigorous Standards; Iron Samples are Continuously Analyzed to Ensure that a Close Grained, High Strength, Non-Porous Iron is Produced; Ward Fittings have a Chamfered Opening to Allow Faster and Easier Pipe Engagement; This Feature Also Protects the Fitting Threads from Damage During Handling; 1 Year Warranty
