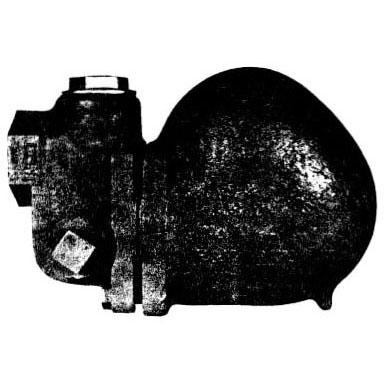

41T 3/4 0-15 F&T STEAM TRAP
Part #BJ41T
MFG #41T
Manufacturer Name : Barnes & Jones
- Steam Trap
- Type Float, Thermostatic
- Nominal Size 3/4"
- Condensate Capacity 230 Lb/HR
- Material Steel
- Differential Pressure Rating 15 PSIG
- Media Handled Steam
- Inclusions/Features Gasket, Float, Stainless Steel Plug, Seat
- Application Vacuum Steam Heating System
- Overall Dimension 3-1/2" Length x 5-1/2" Width x 3-3/4" Height
- Weight 6.5 Lb
- 1-Piece Thermostatic Cage Unit for Air Removal; Water Sealed; Float Operated Valve for Immediate Discharge of Condensate; For Handling Sudden and More Variable that can be Handle by Thermostatic Trap
