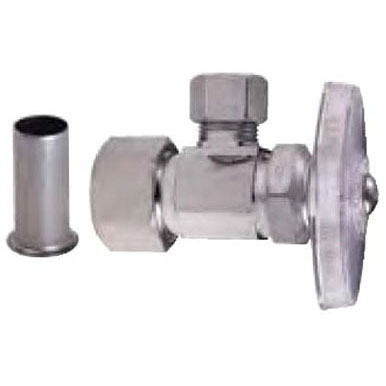

OCR19PXX C Brasscraft 1/2" Compression X 3/8" OD Compression Angle Stop Chrome Plated For Pex
Part #BRAOCR19PXXC
MFG #OCR19PXX C
Manufacturer Name : Brasscraft
- Lead Free; In dustrial Standard for Quality and Reliability; Machined One-Piece Brass Body Provides Strength, Durability and Long-Lasting Performance; Easy-to-Remove Handle Protects Accidental Stop Operation During Rough-ins; Oval Knurled Handle Provides a Secure Grip and Smooth ON/OFF Operation; Handle Variations Available for Specific Configurations; Dual Outlet and Dual Outlet/Dual Shut off Configurations Available; Water Flow is Controlled by the Stem; Washers Help Keep Contaminants Out of the Water Flow; Repairable in the Field
- Install Instructions
Specification Sheet - Water Supply Stop
- Type Angle
- Applicable Standard IAPMO, NSF/ANSI 372, CSA (Canada and US), CUPC
- Actuation Type Oval Handle
- Nominal Size 1/2" x 3/8"
- End Connection PEX x Compression
- End to End Distance 2.41"
- Body Material Chrome Plated Brass
- Handle Material Chrome Plated Die Cast Zinc
- Temperature Rating 40 to 140 Deg F
- Pressure Rating 125 PSI
- Inclusions/Features Chrome Plated Brass Stem, Rubber Bib and Packing Washer, Chrome Plated Brass Packing Nut, Zinc Plated Steel Handle Screw, Chrome Plated Brass Compression Nut, Brass Compression Sleeve, Stainless Steel PEX Tube Insert
- Application Residential, Commercial, Water
- Lead Free
- Packaging Quantity 60
- Weight 13.6 Lb
