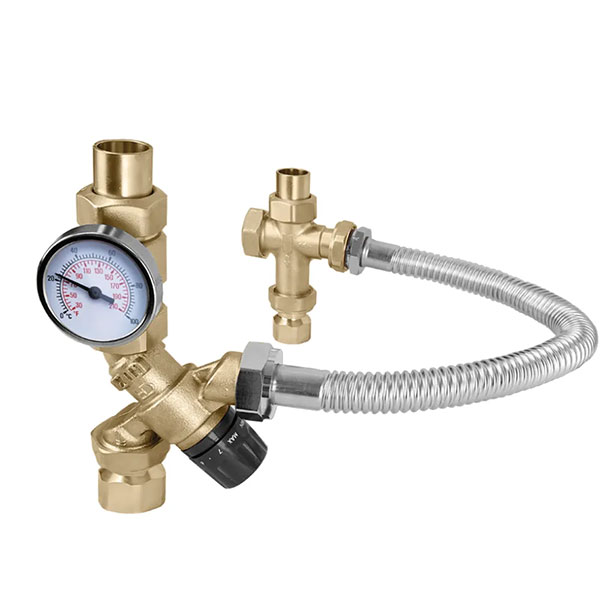

520516AX Caleffi TankMixer 3/4" Press Thermostatic Water Heater Mixing Valve Kit with Gauge
Part #CAL520516AX
MFG #520516AX
End Connection : Press
Manufacturer Name : Caleffi
Set Temp Range : 95 to 150 Deg F
Valve Size : 3/4"
- The Caleffi TankMixer 520_AX series kit combines a three-way thermostatic mixing valve with a cold water cross and flexible pipe for easy installation directly on a typical gas-fired water heater and other water heaters that now comply with the National Appliance Energy Conservation Act (NAECA). The TankMixer maintains the desired output temperature of the mixed water supplied at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The mixing valve hot inlet port closes tight to prevent temperature creep in recirculation applications. Also available as body only, for a wide variety of separately-sourced end connections, the angle style body design offers improved fluid dynamics for better performance and reduces installation labor and materials, eliminating a piping elbow in typical installations.
- DHW thermostatic mixing valve with gauge
- Tank: 3/4" NPT female union connections
- Connection: 3/4", press union
- Maximum working pressure (static): 150 psi
- Maximum working pressure (dynamic): 75 psi
- Adjustment temperature range: 95–150F
- Maximum inlet temperature: 195F.
- Temperature gauge scale: 30–210 F
- Flow rate working range: 0.5–9 gpm
- Cv: 2
