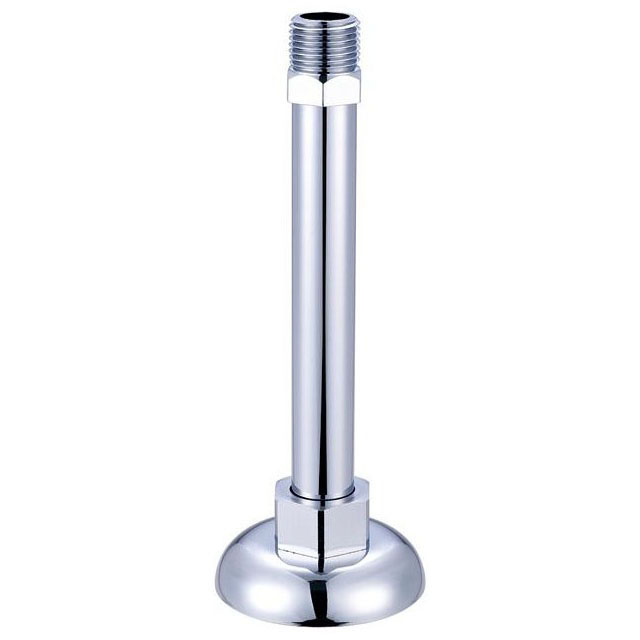

0342-1/2 1/2" CP STAND PIPE ASSY
Part #CB034212
MFG #0342-1/2
Manufacturer Name : Central Brass
- Urinal Standpipe
- Item Standpipe
- Type Flanged
- Applicable Standard ASME A112.18.1M
- Size 1/2"-14 TPI Male Threaded x 3/4"-14 NPSM Female Threaded Nut
- Material 19 Gauge Brass
- Color/Finish Chrome Plated
- Used On Item Urinal Spud
- Overall Dimensions 2-1/2" Diameter x 6-7/16" Length
- Weight 0.54 Lb
- Specification Sheet
- The Standpipe has a 3/4" Female Brass Nut for Connection to the Urinal Spud: The Flange is Chrome Plated Brass: The Standpipe is 3/4" 19-Gauge Chrome Plated Brass Tubing: The 1/2" Male Tapered Pipe Adaptor for Connection to the Urinal Valve is Chrome Plated Brass
