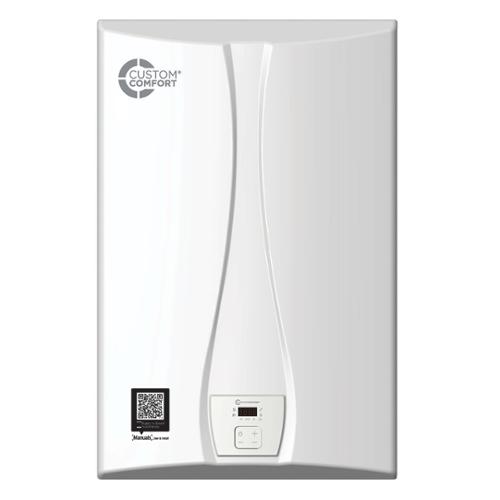

Custom Comfort 19.9K-80K Heat 155K DHW Condensing Gas Wall Hung Combi Boiler 95% AFUE NG/LP
Part #CCOCB80155A
MFG #CB80155-A
AFUE : 90.00 - 99.99%
Application : Water
Boiler Type : Combi
BTU Output : 75,000 - 99,999
Condensing : Yes
Fuel Type : Natural Gas/Propane
Installation Type : Wall Mount
Manufacturer Name : Custom Comfort
Venting Type : Direct
- Install Instructions
Specification Sheet - Certified design according to ANSI Z21.13 - CSA 4.9-2017 standards for indoor residential applications
- Hot Water Flow Rate Capacity (* based on 67F temperature rise): CCOCB80155A - 4.0 GPM, CCOCB100180A - 4.7 GPM, CCOCB120199A/CCOCB140199A - 5.2 GPM
- Dual Primary and Secondary Stainless Steel Heat Exchangers for optimum efficiency and durability
- Weight - 95lbs
- Stainless steel Flat Plate Heat Exchanger for DHW
- Domestic Hot Water Priority
- Compatible with 2" PVC vent up to 60ft** and 3" PVC vent up to 150 ft** (**with no elbows)
- Built-in Control Panel - allows adjustment of temperature and boiler functions including Outdoor Reset Curve setting, heating setback, Integrated Low Water Safety Control, water fill pressure, and output capacity
- Internal Circulation Pump - comes included with a primary circulation pump and air vent for added value and convenience
- Temperature Options - two boiler setpoints: hydronic heating temperature setting range from 82F up to 180F and from 86F to 140F for DHW temperatures
- Outdoor Reset Sensor - when installed with an Combi model, the unit controls will sense outdoor ambient temperatures and adjust the boiler operation for maximum comfort and efficiency
- AFUE Ratings: CCOCB80155A / 100 / 120 / 140 - 95.0% (NG/LP)
- Compatible with Natural Gas(NG) and Propane (LPG)*** (***requires installation of included Field Conversion Kit by a qualified service agency)
- Certified by CSA, ASME, NSF/ANSI 372 for Low Lead (DHW only)
- 10-Year Heat Exchanger and 5-Year Parts Warranty (Residential)
- 5-Year Heat Exchanger and 3-Year Parts Warranty (Commercial)
