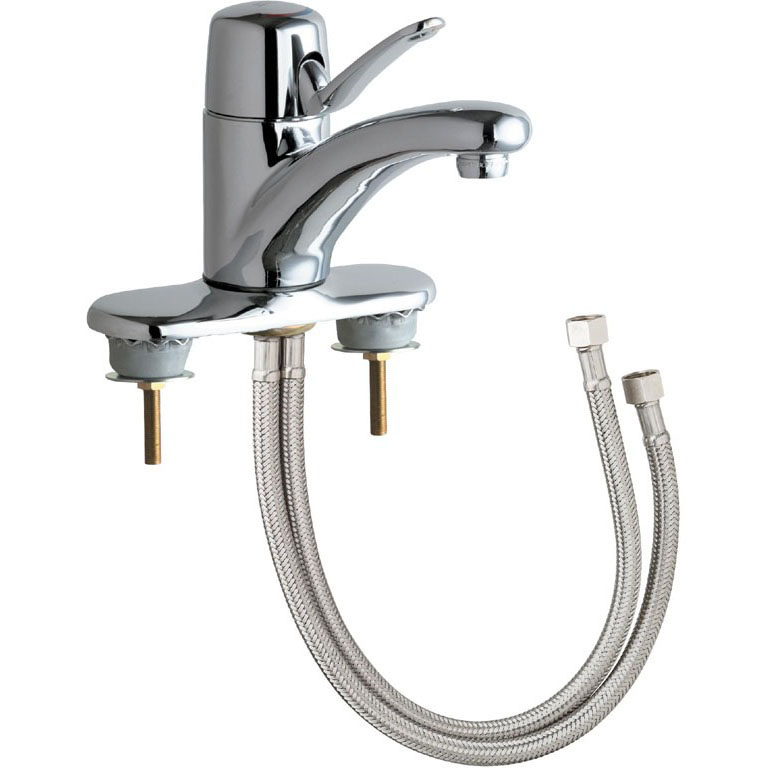

2200-4ABCP Single Lever Deck-Mounted Single-Hole Manual Lavatory Faucet With Optional 4" And 8" Cover Plates Chrome
Part #CHI22004ABCP
MFG #2200-4ABCP
Color/Finish : Chrome
Drain Included : No
Flow Rate : 2.20 GPM
Handles : 1
Installation Type : Centerset
- Sink Faucet
- Type Deck Mount
- Applicable Standard ADA, ANSI/ICC A117.1, ASME A112.18.1/CSA B125.1, NSF/ANSI 61/372, CSA
- Inlet size 3/8"
- Spout Dimensions 3" Clearance x 4-3/4" Reach
- Body Material Cast Brass
- Spout Material Cast Brass
- Handle Type Lever
- Handle Material Metal
- Color/Finish Chrome Plated
- Aerator Type Pressure Compensating Softflo
- Inlet Connection Compression
- Faucet Hole Center 4"
- Flow Rate 2.2 GPM
- Inclusions/Features Flexible Supply Hose
- Used on Item Bathroom Sink
- Operating Temperature 40 to 140 Deg F
- Operating Pressure 20 to 125 PSI
- Weight 4.962 Lb
- Warranty Lifetime Limited
- Install Instructions
Specification Sheet - Ecast from Chicago Faucets is the Line of Durable, High-Quality Brass Faucets and Fixtures; That are Designed and Manufactured with Less than One Quarter of One Percent (0.25 Percent) Total Lead Content by Weighted Average; Ceramic Volume Control and Hot Water Limit Stop Cartridge; 3/8" Compression Flexible Stainless Steel Supply Hoses; Lifetime Limited Warranty
