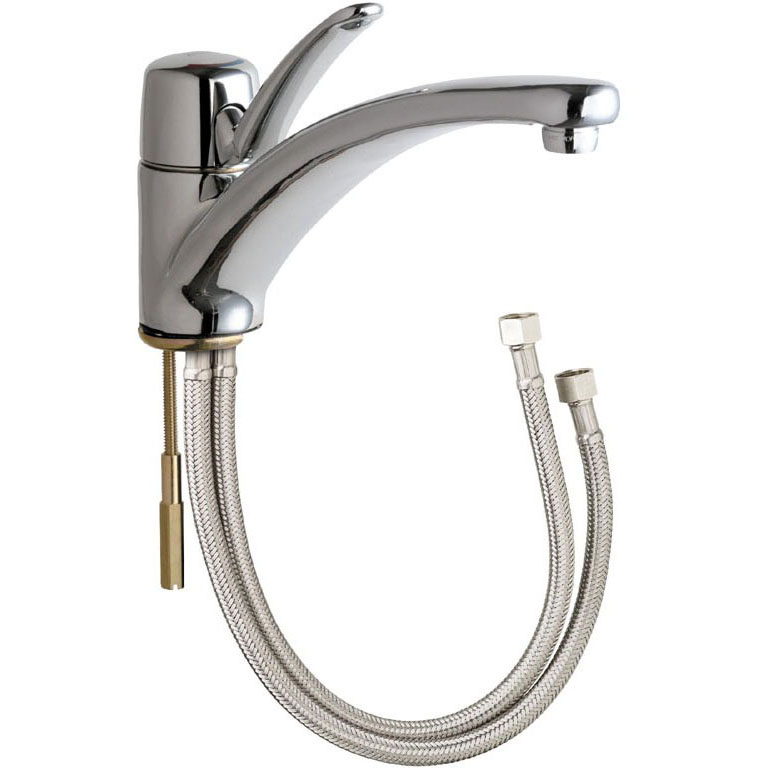

2300-ABCP Deck-Mounted Manual Kitchen Sink Faucet Single-Hole Mounting With Optional 8" Cover Plate Chrome
Part #CHI2300ABCP
MFG #2300-ABCP
Color/Finish : Chrome
Faucet Holes : 1
Flow Rate : 2.20 GPM
Handles : 1
Manufacturer Name : Chicago
Mount Type : Deck Mount
Spray Type : No Spray
- Sink Faucet
- Type Deck Mount
- Applicable Standard ADA, ANSI/ICC A117.1, ASME A112.18.1/CSA B125.1, NSF/ANSI 61/372, CSA (Canada and US)
- Inlet size 3/8"
- Spout Type Swing
- Spout Dimensions 8-3/8" Height x 5" Clearance x 10" Reach
- Spout Material Cast Brass
- Handle Type Lever
- Handle Material Metal
- Color/Finish Chrome Plated
- Aerator Type Softflo
- Inlet Connection Compression
- Faucet Hole Center Single
- Flow Rate 2.2 GPM
- Inclusions/Features Blue and Red Temperature Indicator, Ceramic Quaturn Cartridges, Square, Tapered Stem, Flexible Stainless Steel Supply Hoses with 3/8" Compression Fitting
- Used on Item Bathroom Sink
- Handle Size 4-5/8"
- Pressure Rating 20 to 125 PSI
- Operating Temperature 40 to 140 Deg F
- Weight 5 Lb
- Warranty Lifetime Limited
- Install Instructions
Specification Sheet - Ecast from Chicago Faucets is the Line of Durable, High-Quality Brass Faucets and Fixtures; That are Designed and Manufactured with Less than One Quarter of One Percent (0.25 Percent) Total Lead Content by Weighted Average; Lifetime Limited Warranty
