Brand : Chicago
Manufacturer Name : Chicago

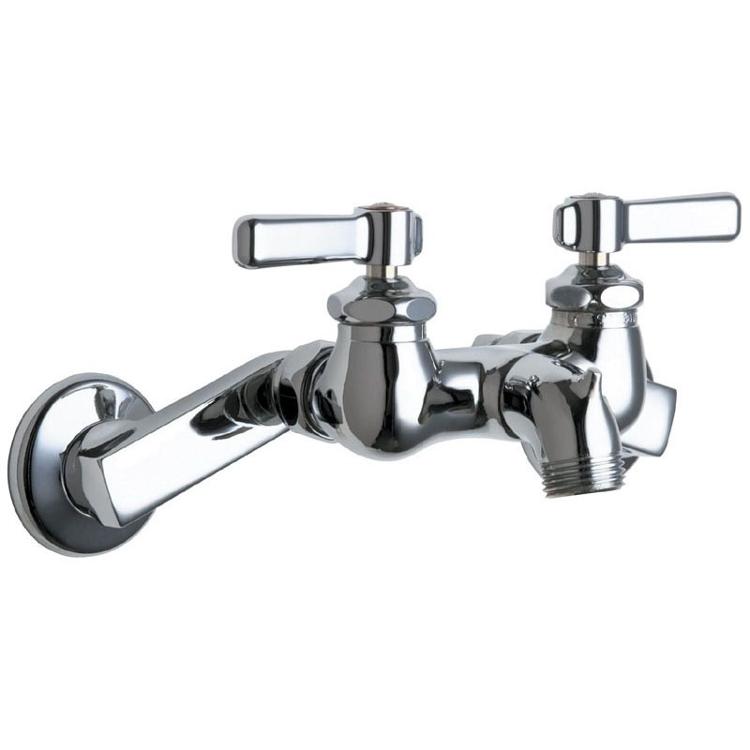

- Sink Faucet
- Type Wall Mount
- Applicable Standard ADA, ANSI/ICC A117.1, ASME A112.18.1/CSA B125.1, CSA (Canada and US), NSF/ANSI 61
- Inlet Size 1/2"
- Spout Type Short
- Handle Type Lever
- Handle Material Metal
- Color/Finish Chrome Plated
- Aerator Type Vandal Resistant
- Inlet Connection Female Threaded
- Faucet Hole Center 8"
- Inclusions/Features Pail Hook, Male Hose Thread Outlet, Tapered Broach, Secured Blue and Red Index Buttons, Quaturn Rebuildable Compression Cartridge, Square, Tapered Stem, 2-5/16" Diameter Slip Flange
- Used on Item Hot and Cold Water Sink
- Handle Size 2-3/4"
- Pressure Rating 20 to 125 PSI
- Operating Temperature 40 to 140 Deg F
- Weight 3.37 Lb
- Warranty Lifetime Limited
- Install Instructions
Specification Sheet - 3-3/8" Body, Adjustable Arms; 2-3/8" Vandal Resistant Lever Handle; Quarter Turn Compression Operating Cartridge; 2-1/2" off set Inlet Supply Arm with 1/2" Not Female Thread Inlet; 2-5/16" Diameter Slip Flange; Short Spout with Pail Hook and 3/4" Male Hose Thread Outlet; Lifetime Limited Warranty
