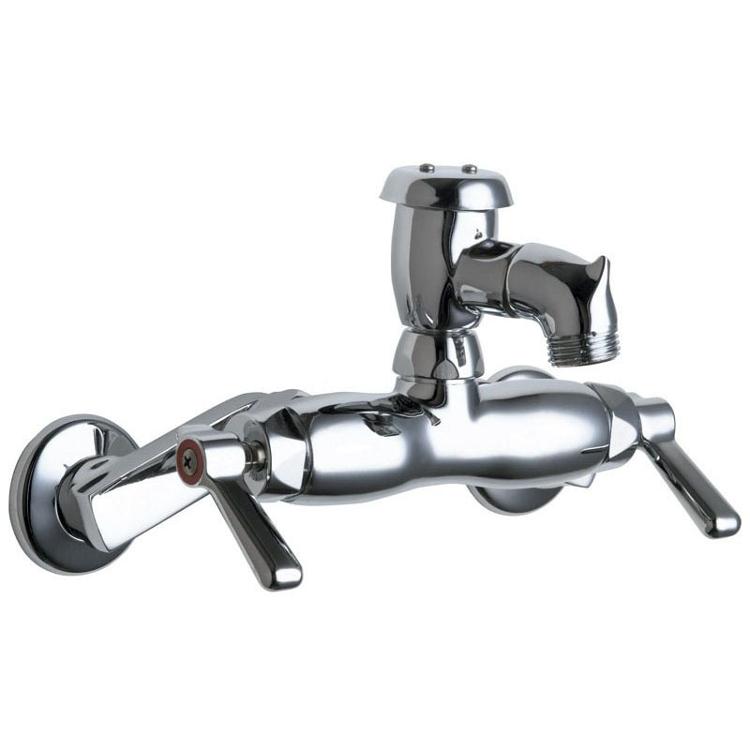

305-VBCP Wall-Mounted Manual Sink Faucet With 3-3/8" Centers Chrome

Part #CHI305VBCP

MFG #305-VBCP

Specifications

• Sink Faucet
• Type Wall Mount
• Applicable Standard ADA, ANSI/ICC A117.1, ASME A112.18.1/CSA B125.1, CSA (Canada and US), NSF/ANSI 61
• Inlet Size 1/2"
• Spout Type Rigid
• Spout Dimensions 1" Clearance
• Handle Type Lever
• Handle Material Metal
• Color/Finish Chrome Plated
• Aerator Type Vandal Resistant
• Inlet Connection Female Threaded
• Faucet Hole Center 8"
• Inclusions/Features Pail Hook, Male Hose Thread Outlet, Tapered Broach, Secured Blue and Red Index Buttons, Quaturn Rebuildable Compression Cartridge, Opens and Closes 90 Deg, Square, Tapered Stem, 2-5/16" Diameter Slip Flange
• Used on Item Hot and Cold Water Sink
• Handle Size 2-3/8"
• Pressure Rating 20 to 125 PSI
• Operating Temperature 40 to 140 Deg F
• Weight 5.25 Lb
• Warranty Lifetime Limited
