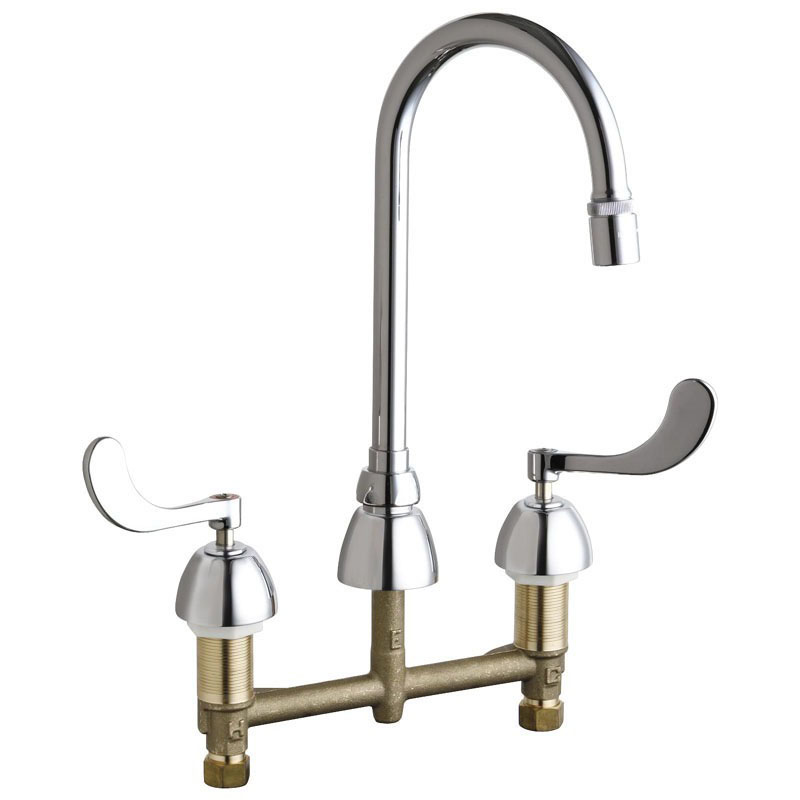

786-E29XKABCP 2 Handle Deck-Mounted Manual Lavatory Faucet With 8" Centers Chrome
Part #CHI786E29XKABCP
MFG #786-E29XKABCP
Color/Finish : Chrome
Drain Included : No
Flow Rate : 2.20 GPM
Handles : 2
Installation Type : Widespread
Manufacturer Name : Chicago
- Sink Faucet
- Type Deck Mount
- Applicable Standard ADA, ANSI/ICC A117.1, ASME A112.18.1/CSA B125.1, NSF/ANSI 61/372, CSA (Canada and US)
- Inlet size 1/2"
- Spout Type Rigid/Swing Gooseneck
- Spout Dimensions 11-5/8" Height x 7-3/8" Clearance x 5-3/8" Reach
- Body Material Cast Brass
- Handle Type Wrist Blade
- Handle Material Metal
- Color/Finish Chrome Plated
- Aerator Type Vandal Resistant
- Inlet Connection Threaded
- Faucet Hole Center 8"
- Flow Rate 2.2 GPM
- Inclusions/Features Non-Aerating, Laminar Flow Outlet, Tapered Broach, Secured Blue and Red Index Buttons, Ceramic Quaturn Cartridges, Square Tapered Stem
- Used on Item Bathroom Sink
- Handle Size 4"
- Pressure Rating 20 to 125 PSI
- Operating Temperature 40 to 140 Deg F
- Weight 5 Lb
- Warranty Lifetime Limited
- Install Instructions
Specification Sheet - Ecast from Chicago Faucets is the Line of Durable, High-Quality Brass Faucets and Fixtures; That are Designed and Manufactured with Less than One Quarter of One Percent (0.25 Percent) Total Lead Content by Weighted Average; Lifetime Limited Warranty
