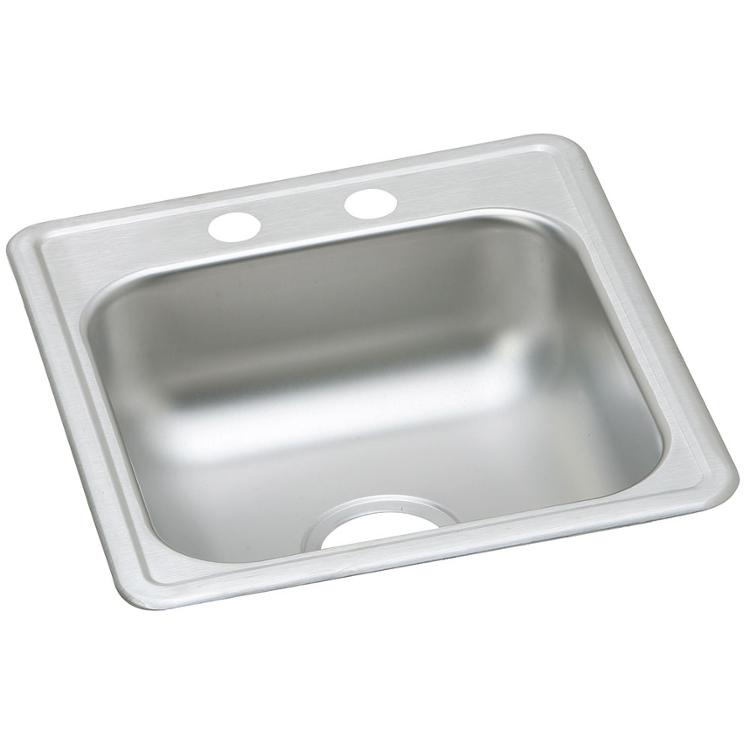

D117192 Dayton 17" X 19" X 6-1/8" Drop-In Single Bowl 2-Hole Bar Sink 22 Gauge Stainless Steel

Part #DAYD117192

MFG #D117192

Specifications

• Bar Sink
• Type Single Bowl
• Shape Square in Rectangle
• Applicable Standard ADA, ASME A112.19.3/CSA B45.4, ANSI/ICC A117.1, UPC, IAPMO, IPC, NPC
• Length 17"
• Width 19"
• Cutout Dimensions 16-3/8" Length x 18-3/8" Width
• Bowl Dimensions 14" Length x 14" Width x 6-1/8" Depth
• Material 301 Series Nickel Bearing Stainless Steel
• Color/Finish Satin
• Material Thickness 22 Gauge
• Number of Holes 2
• Faucet Hole Center 4"
• Mounting Type Top Mount
• Inclusions/Features 21" Minimum Cabinet Width, Undercoated, U-Channel Type Mounting System, Installation Hardware
• Exclusions Raised Faucet Deck
• Drain Hole Size 3-1/2"
• Faucet Hole Size 1-1/2"
• Corner Sink Radius 2-1/2" Vertical and 2-3/4" Horizontal
• Optional Accessories Bottom Grid
• Warranty Lifetime Limited
