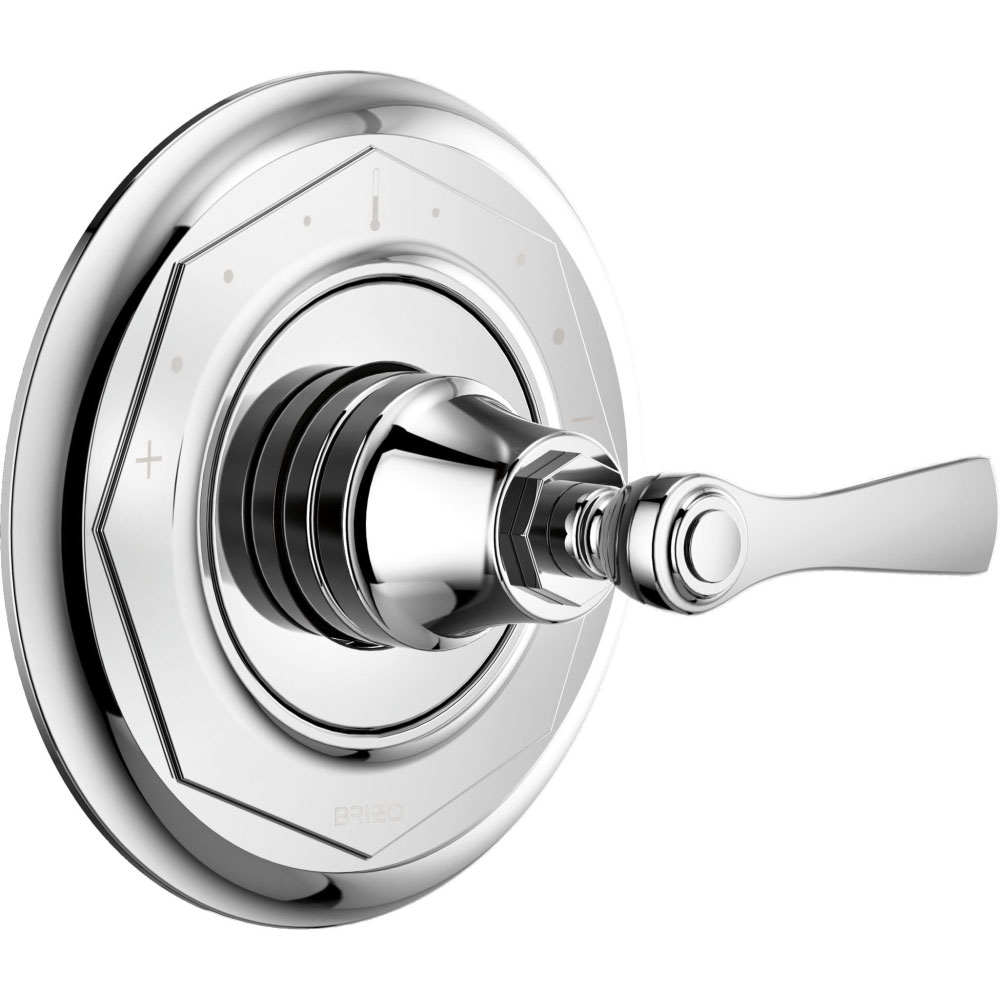

T66T060-PC Rook Sensori Thermostatic Valve Trim With Lever Handle Chrome
Part #DT66T060PC
MFG #T66T060-PC

Manufacturer Name : Brizo
- Thermostatic Valve Trim
- Type Lever
- Handle Dimensions 7 Inch Diameter
- Number of Handles 1
- Color/Finish Polished Chrome Plated
- Inclusions/Features Sensori Thermostatic Cartridge, Temperature Control
- Used On Item Shower Faucet, Rough-In Valve
- Used On Item Part No R66000-WS
- Applicable Standard ADA, ASME A112.18.1/CSA B125.1, ICC/ANSI A117.1
- Install Instructions
Specification Sheet - Thermostatic Wax Element Maintains the Outlet Temperature to +/- 3.6 Degree F; Handle Controls Temperature Only; Must be Used with One or More Sensori Volume Controls; Field Adjustable to Limit Rotation into Hot Water Zone; All Parts are Replaceable from the Front of the Valve; Adjusts for up to 5/8 Inch Wall Thickness; RP72604 Extension Kit Extends Rough Installation up to 1-3/4 Inch; Thermostatic Cartridge Ships with Trim; ADA Compliant; Limited Lifetime Warranty on Parts and Finish
