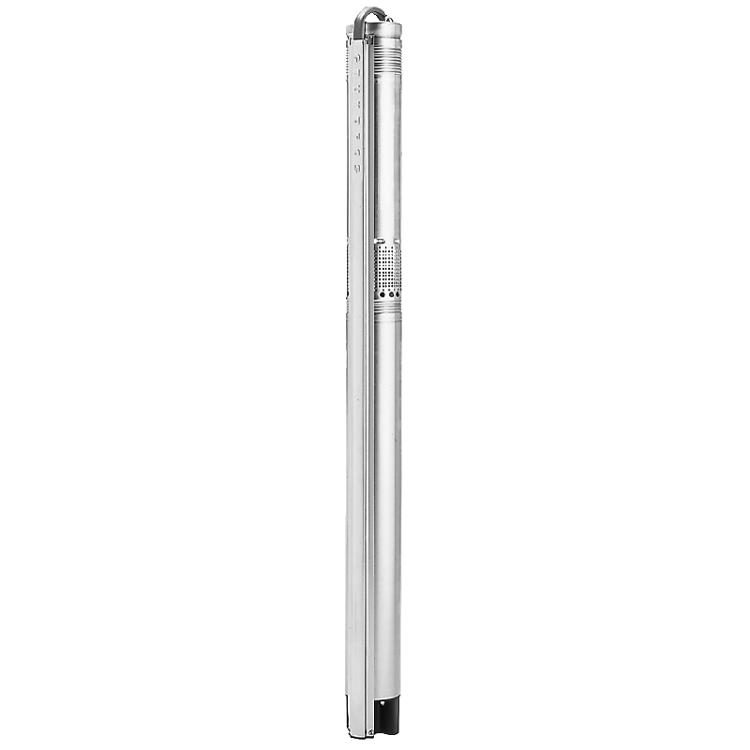

22 SQE10-190 Grundfos 1 HP 22 GPM 200-240V Submersible Pump
Part #GRU96160200
MFG #96160200
Flow Rate : 22.00 GPM
Horsepower : 1 HP
Manufacturer Name : Grundfos
Option : 2-Wire with Ground
Type : Pump
- The SQE is the only pump on the market fully equipped with built-in electronic controls which allow for advanced computer controlled performance and state of the art protection features including sophisticated diagnostics
- Combine with the CU301 User Interface for operating the pump in constant pressure mode
- Push button pressure setpoint adjustment
- Low well water indicator
- Pump running indicator
- Keypad lockout
- High quality stainless steel pressure sensor
- Built-in diagnostics
- Flow rates-5, 10, 15, 22 and 30 GPM
- Head up to 450 feet at 5 GPM
- 115VAC and 230VAC models - all single phase
- System operates from 40-100 PSI
- Install Instructions
- The SQE submersible groundwater pump is one of the most advanced submersible pump solutions for domestic applications. Equipped with a permanent magnet motor and a built-in variable speed drive, it enables performance adjustments by means of communication with an external control box. SQE features a variable speed drive, which helps the pump to automatically adjust itself to ensure constant water pressure regardless of changing demands, eliminating weak or fluctuating water supply and improving comfort. SQE is provided as an all-in-one box solution, easy to both install and operate. It is suitable for continuous and intermittent operation for a variety of applications, including groundwater supply and pressure boosting.
