Part #GRUUPS26150F115

MFG #95906630

Specifications

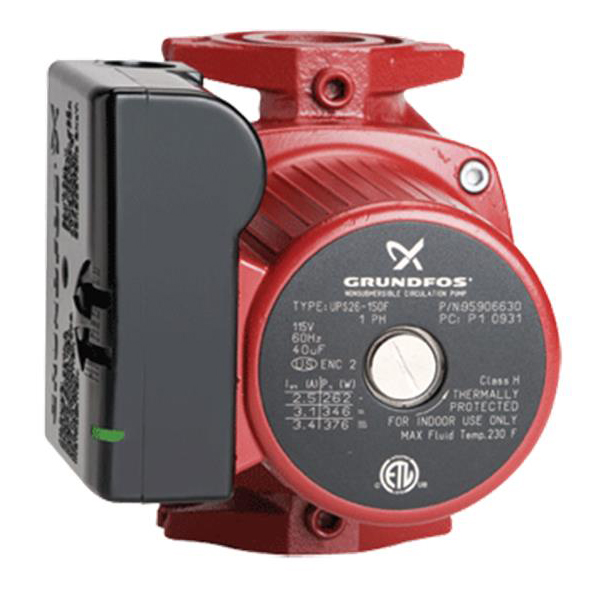

• Circulator Pump
• Type Wet Rotor, 3-Speed, In-Line
• Applicable Standard ANSI/NSF 61, CSA, CUL, ETL (Canada and US), UL, UL (Canada and US)
• End Connection GF 15/26 Flanged x GF 15/26 Flanged
• Overall Dimensions 7.13" Length x 6.5" Height
• Flow Rate 0 to 53 GPM
• Discharge Head 150 Decimeter
• Casing Material Cast Iron
• Shaft Material Aluminum Oxide Ceramic
• Impeller Material Polyethersulfone Composite
• Impeller Design Closed
• Warranty 36 Month Limited from Date of Manufacture
• Shaft Seal Details Ceramic Face
• Power Rating 1/2 HP
• Input Supply Rating 370 Watt at 115 Volt 60 Hertz 1 Phase 3.5 Amp
• Temperature Rating 36 to 230 Deg F Liquid for Closed System
• Pressure Rating 145 PSI
• Motor Type Permanent Split Capacitor, 2 Pole
• Options Cast Iron Flange with Terminal Box
• Inclusions/Features Whisper Quiet Operation, Built-In Timer, Line-Cord and Aquastat, Unique Wet Rotor Design, Check Valve, Saves Upto 12000 Gallons
• Application Boiler/Hydronic Heating, Ground-Source Heat Pumps, Radiant Floor Heating, Hydronic and Fan-Coil Heating, Solar Heating, Heat Recovery/Heat Pumps, Residential or Light Commercial
• Material Aluminum Stator Housing, EPDM Rubber O-Ring, Stainless Steel Rotor Can
